Description

Product Overview:

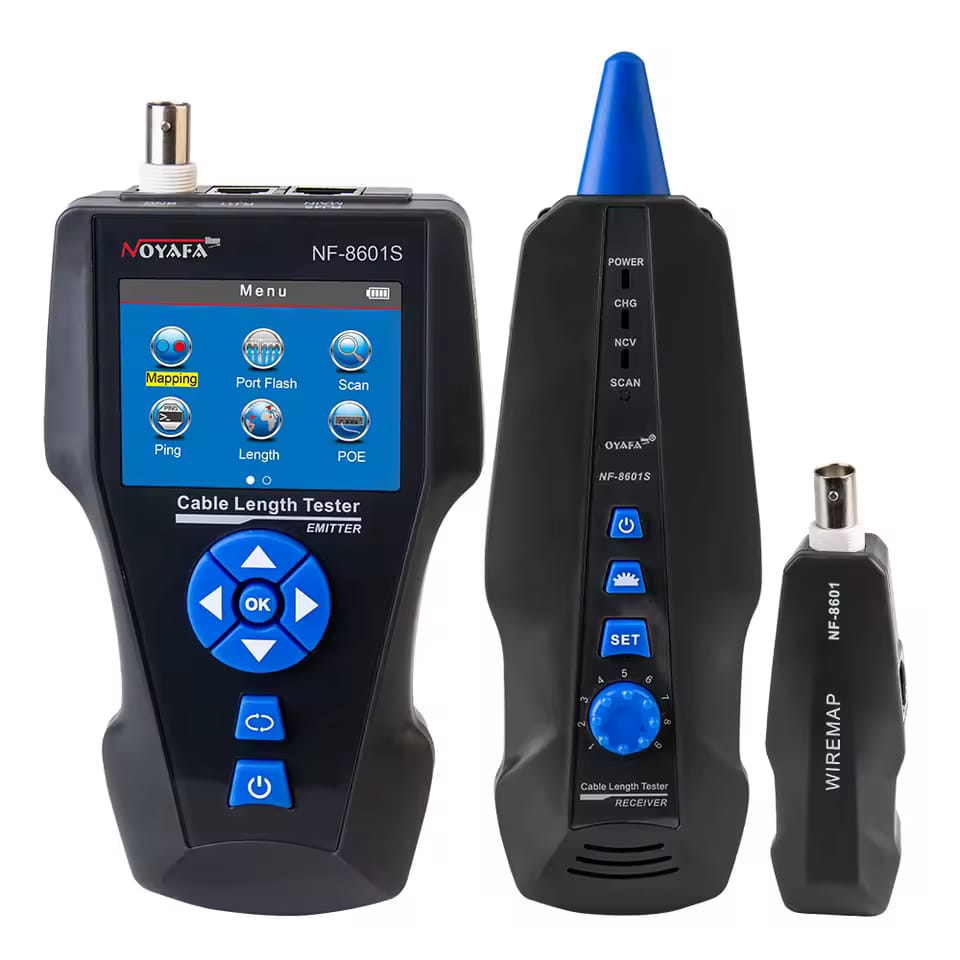

The Noyafa NF-8601S is an advanced TDR cable tester and PoE diagnostic tool designed for CAT5, CAT6, and CAT7 network cables, as well as coaxial and telephone lines. Utilizing Time Domain Reflectometry (TDR) technology, it provides high-precision length measurements and fault location up to 500 meters.

Features:
-TDR Technology: Measures lengths for RJ45, RJ11, BNC, and power cables up to 500m (1640ft) with a calibration precision of 2%
-Fault Diagnostics: Directly displays wiring fault names, including Open Circuit and Short Circuit, and provides the specific distance to the fault
-PoE Detection: Identifies Power over Ethernet (PoE) cables, detects voltage levels, and indicates which pins are delivering DC power and data
-Network Performance (Ping): Includes a Ping test function to examine data packets and measure minimum/maximum response times
-Advanced Cable Tracing: Features a toner probe with AC interference rejection and three tracing modes: high frequency, PoE switch, and low frequency
-Port Flash: Generates a flashing light on server or switch ports to identify specific connected cables
-NCV Detector: Built-in Non-Contact Voltage tester (90-1000V) to identify electricity without physical contact
-Data Management: Includes a 1GB TF card for data storage and export to a PC

Specifications:
-Cable Types: RJ45 (including CAT7), RJ11, BNC, and Power Cables
-Measurement Range: 5m to 500m (18ft to 1640ft)
-Accuracy: Measurement precision of 3% (±0.5m or ±1.5ft)
-Display: Integrated color screen

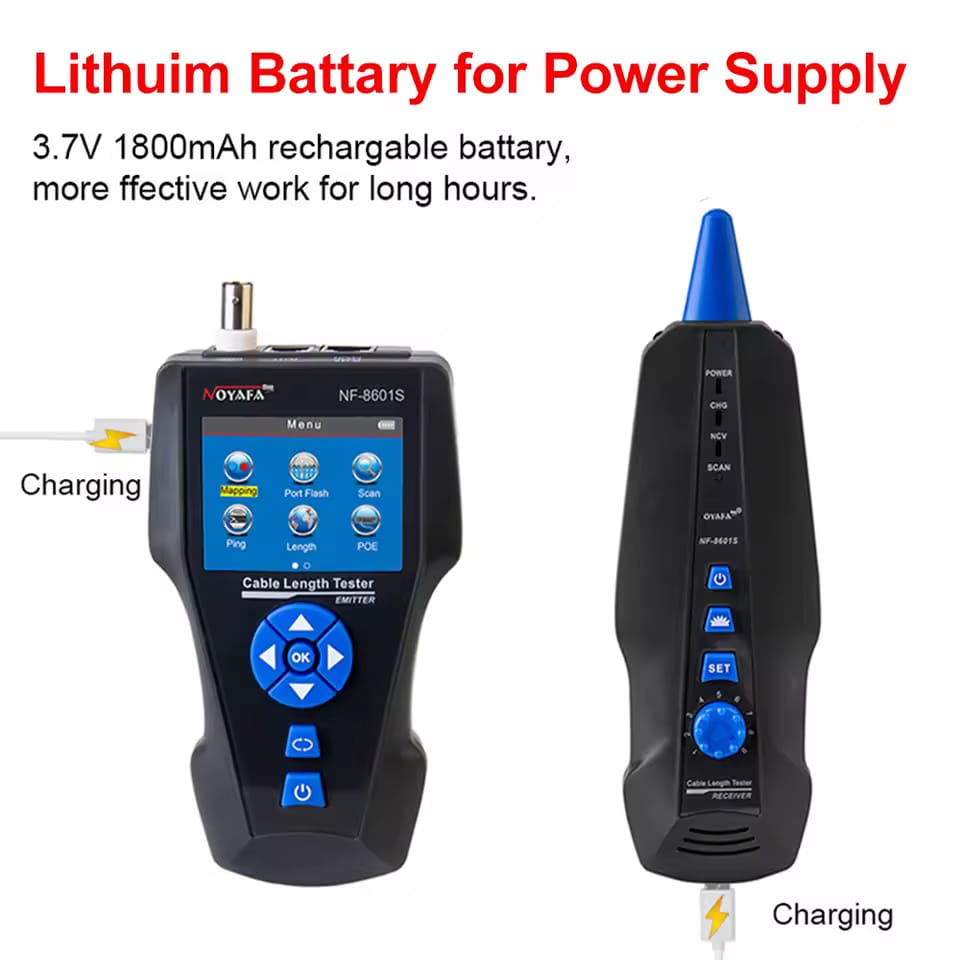

-Power Supply: 3.7V 1800mAh rechargeable lithium battery

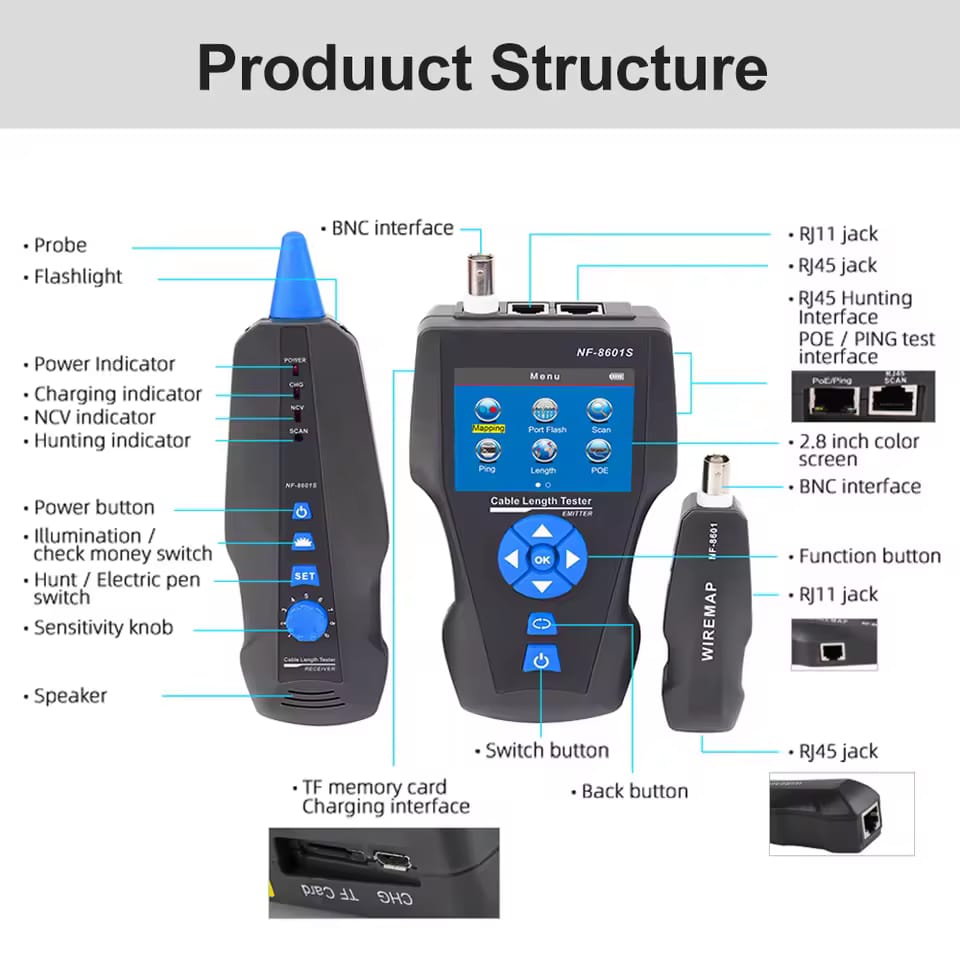

-Interface: RJ45, RJ11, BNC, and PoE switch scan support
