Description

Product Overview:

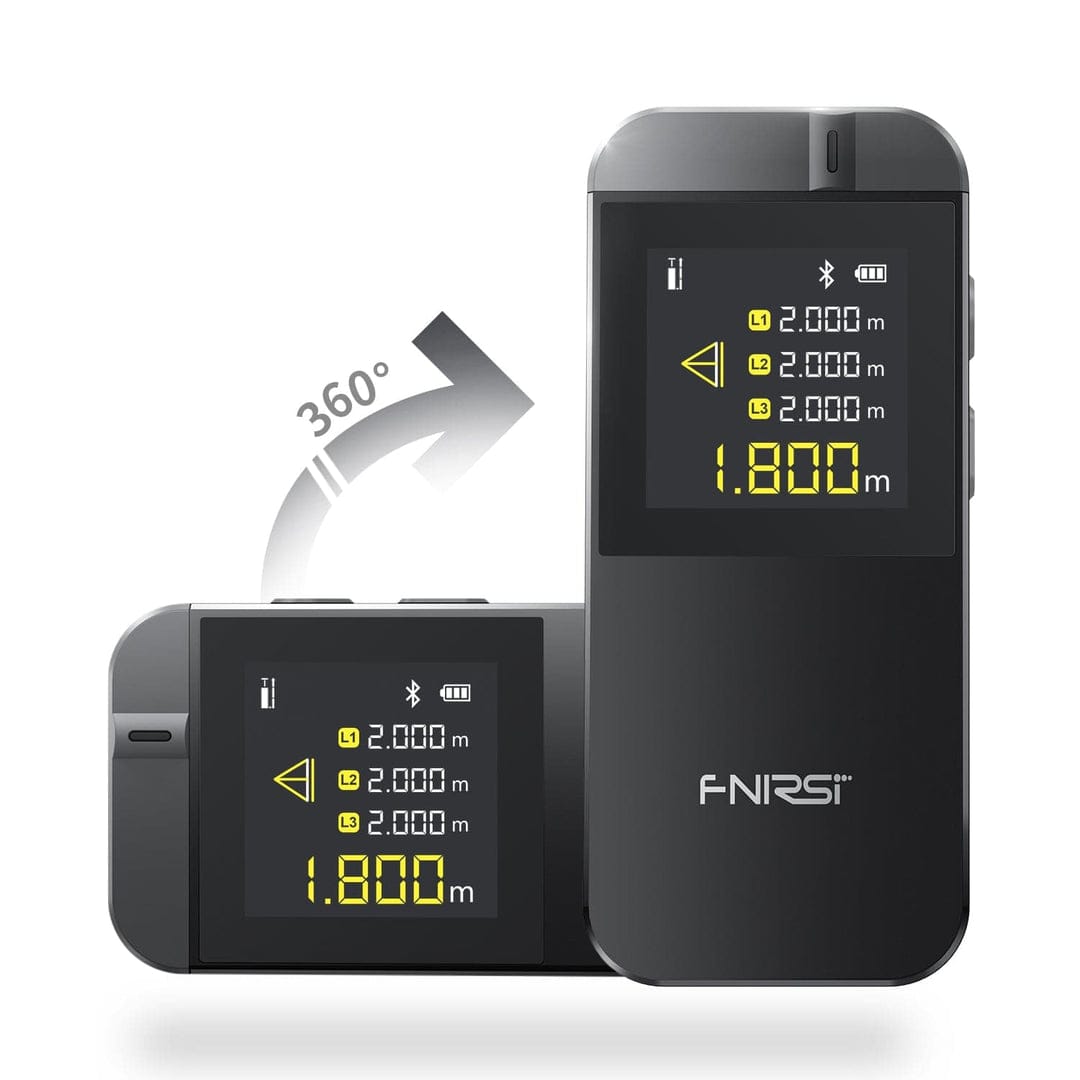

The FNIRSI IR40 is a compact, digital laser distance meter with a measurement range of 0.05m to 40m. It features a 1.3-inch HD IPS display with a 360° auto-flip gravity sensor for multi-angle readability. The device includes Bluetooth connectivity for real-time data synchronization with the “RangeFinder” mobile app (iOS and Android).

Key Features:
-Multiple Measurement:

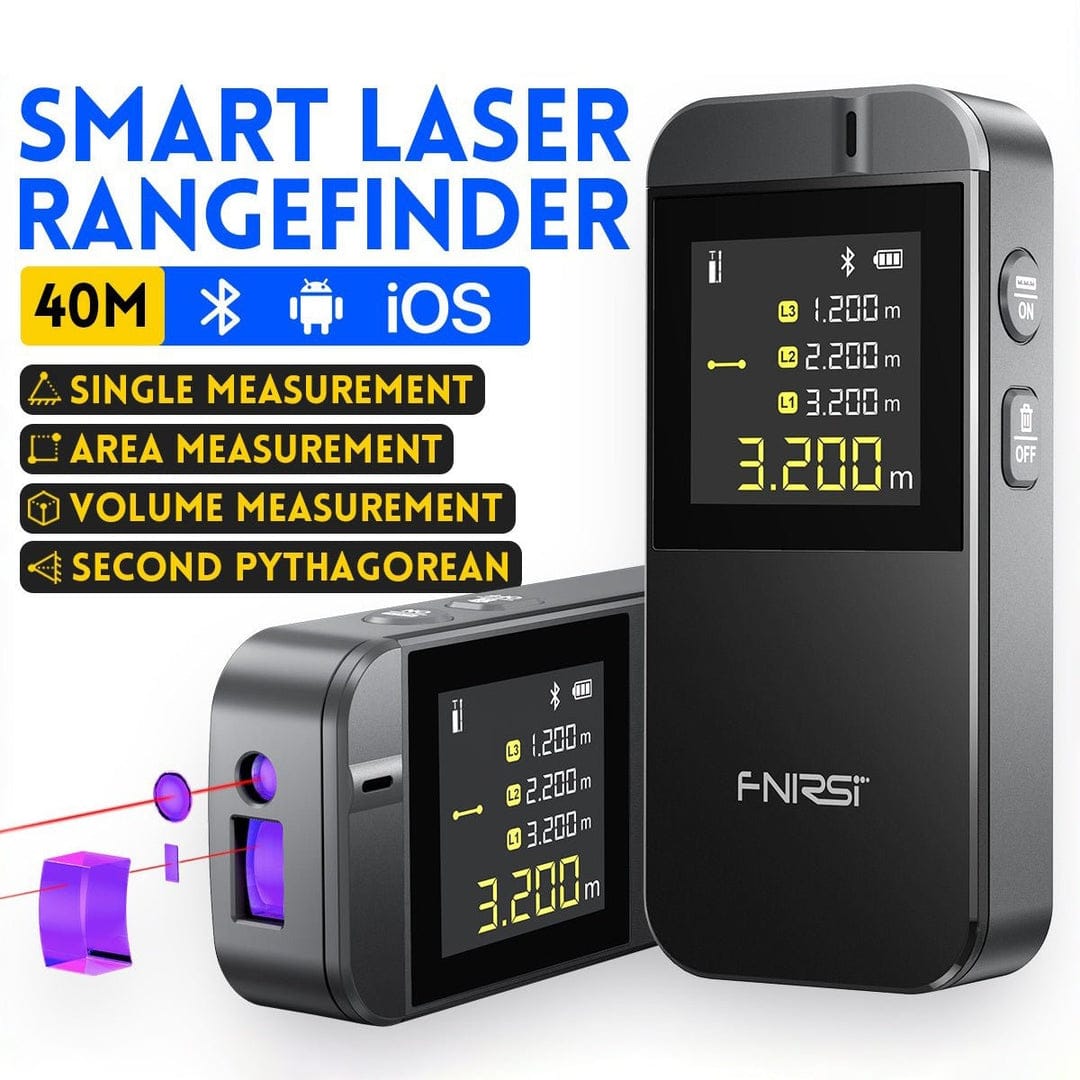

Modes: Single, continuous, area, volume, and Pythagorean (indirect) measurements
-Connectivity: Bluetooth integration for floor plan drawing and data logging via mobile app
-Gravity Sensing: ROHM acceleration sensor automatically rotates the screen orientation
-Rechargeable Battery: Internal 400mAh lithium battery provides up to 3,000 measurements per full charge
-Benchmarking: Supports both front and rear reference point measurements

Technical Specifications:
-Measurement Range: 0.05m ~ 40m
-Accuracy: ±(2mm + 5×10⁻⁵Dmm)
-Resolution: 1mm
-Laser Class: Class II (620–670nm, <1mW)
-Measurement Time: 0.1 ~ 3 seconds
-Units: Meters (m), Feet (ft), Inches (in)
-Charging Port: USB Type-C
-Operating Temp: 0°C to 40°C
-Storage Temp: -20°C to 60°C
-Dimensions: 34.5 x 79 x 19 mm
-Weight: 45g
