Description

Product Overview:

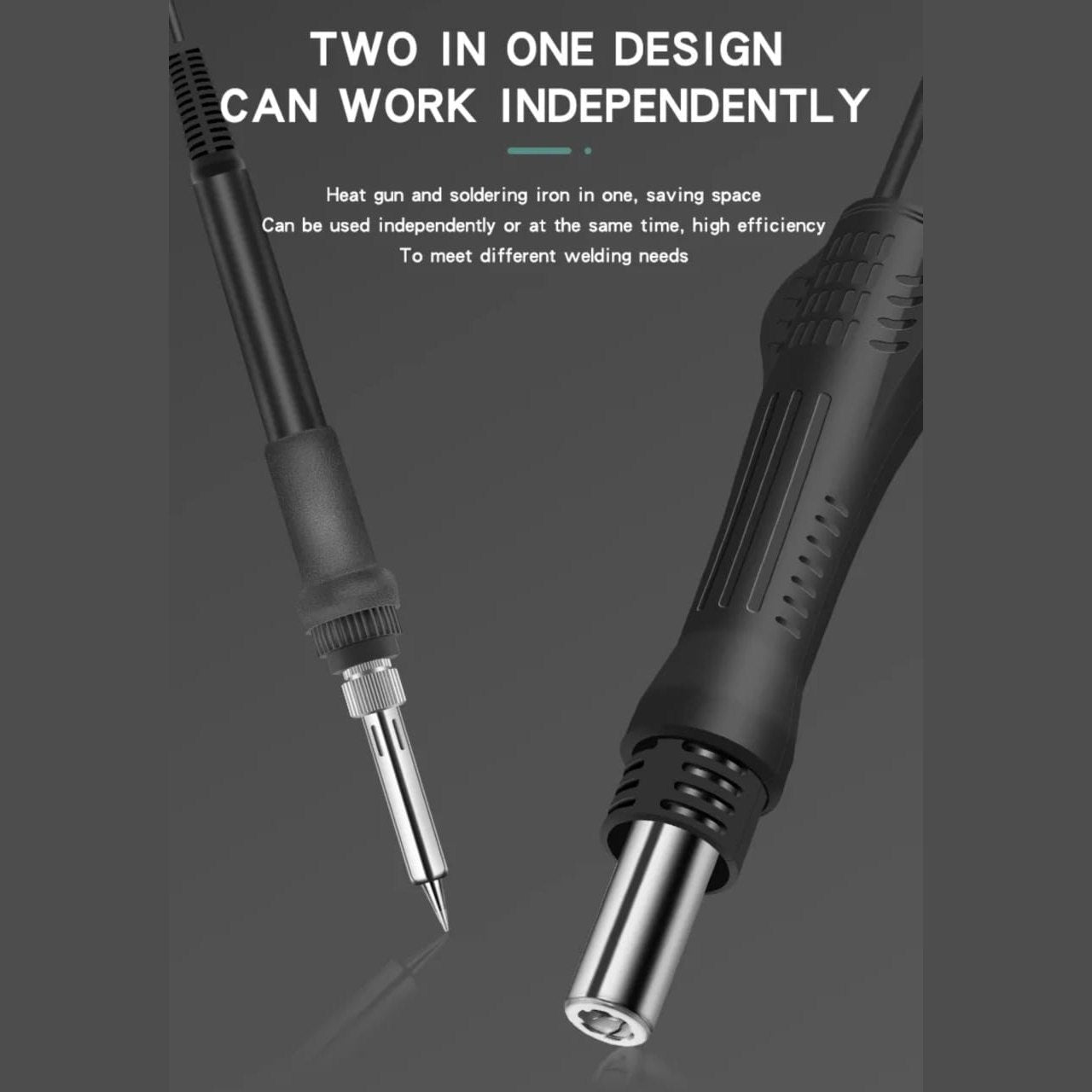

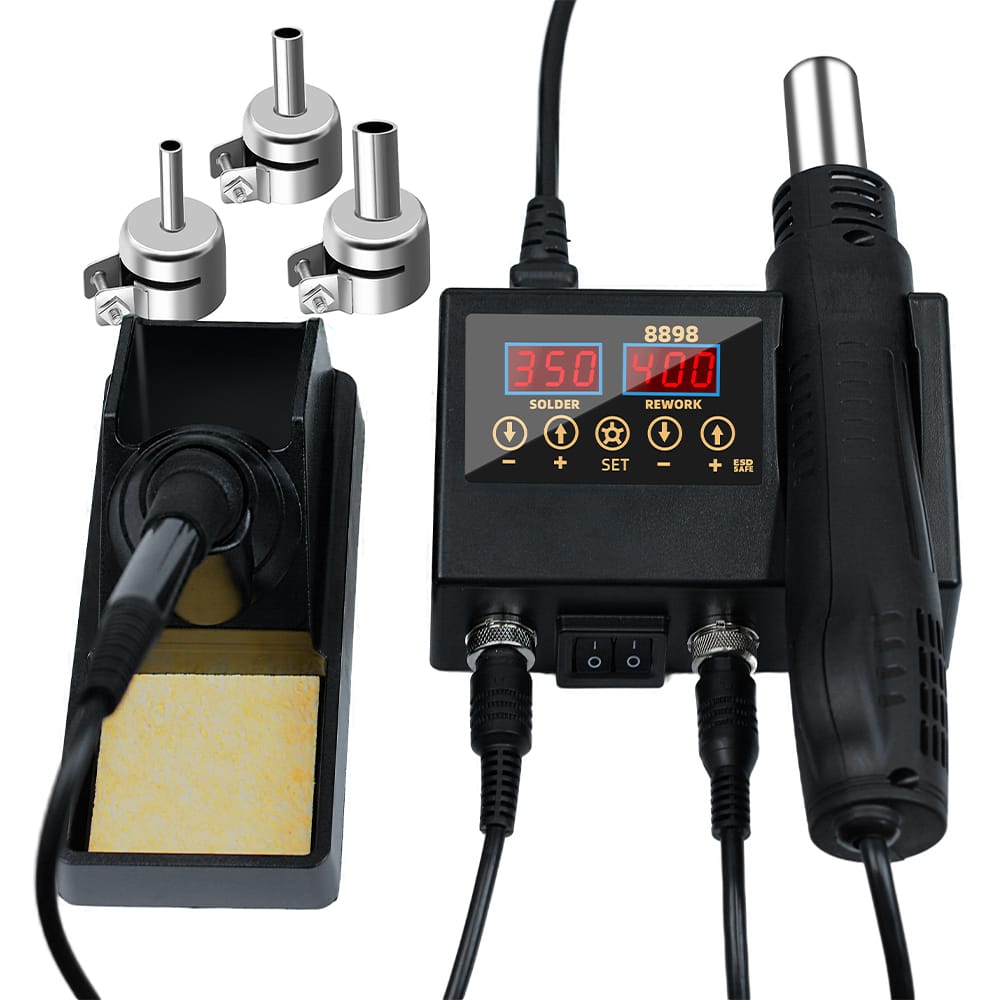

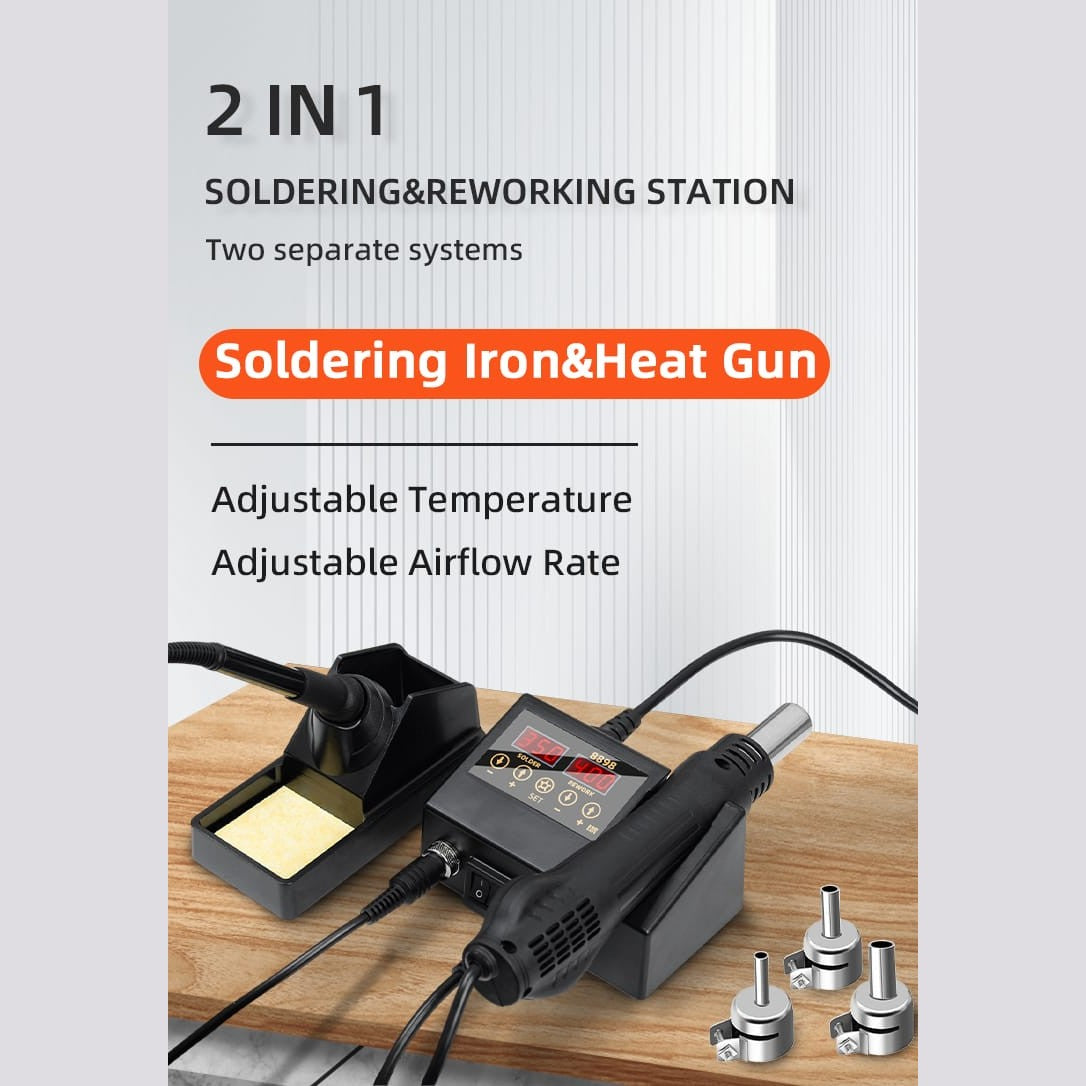

The 2-in-1 Multi-functional Soldering Station is an integrated tool consisting of a 60W Soldering Iron and a 600W Hot Air Station. The unit features dual LCD screens for digital temperature display and independent controls for both the soldering and hot air components.

Key Applications:
-Soldering: Installation and repair of electronic components on circuit boards
-Hot Air Rework: Removal and installation of surface-mount devices (SMD)
-Thermal Processing: Heat shrinking of tubing and plastic component heating
-Maintenance: General electronics repair and circuit assembly

Technical Specifications:
-Input Data
Input Voltage: AC 110V (50Hz-60Hz) or AC 220V (50Hz-60Hz)
Display Method: Digital LCD screen for temperature monitoring

Soldering Station Specifications:
-Power Output: 60W
-Temperature Range: 180°C – 500°C (356°F – 932°F)
-Temperature Accuracy: Plus or minus 5°C (41°F)
-Heating Element Resistance: 52 – 58 Ohms (110V version) / 210 – 230 Ohms (220V version)
-Calibration Range: Plus or minus 99 units

Hot Air Station Specifications:
-Power Output: 600W
-Temperature Range: 100°C – 500°C (212°F – 932°F)
-Temperature Accuracy: Plus or minus 20°C (68°F)
-Air Volume Range: F1 to F99 (Maximum 120L/min)
-Calibration Range: Plus or minus 99 units

Product Details:
-Material: Metal and heat-resistant plastic housing
-Connection Method: Wired integrated handles
-Connectivity Technology: Plug-and-play AC connection
-Power Source: AC Power (110V or 220V configuration)
-Station Design: 2-in-1 Desktop integrated console
-Mounting Type: Tabletop / Workbench
