Description

Product Overview:

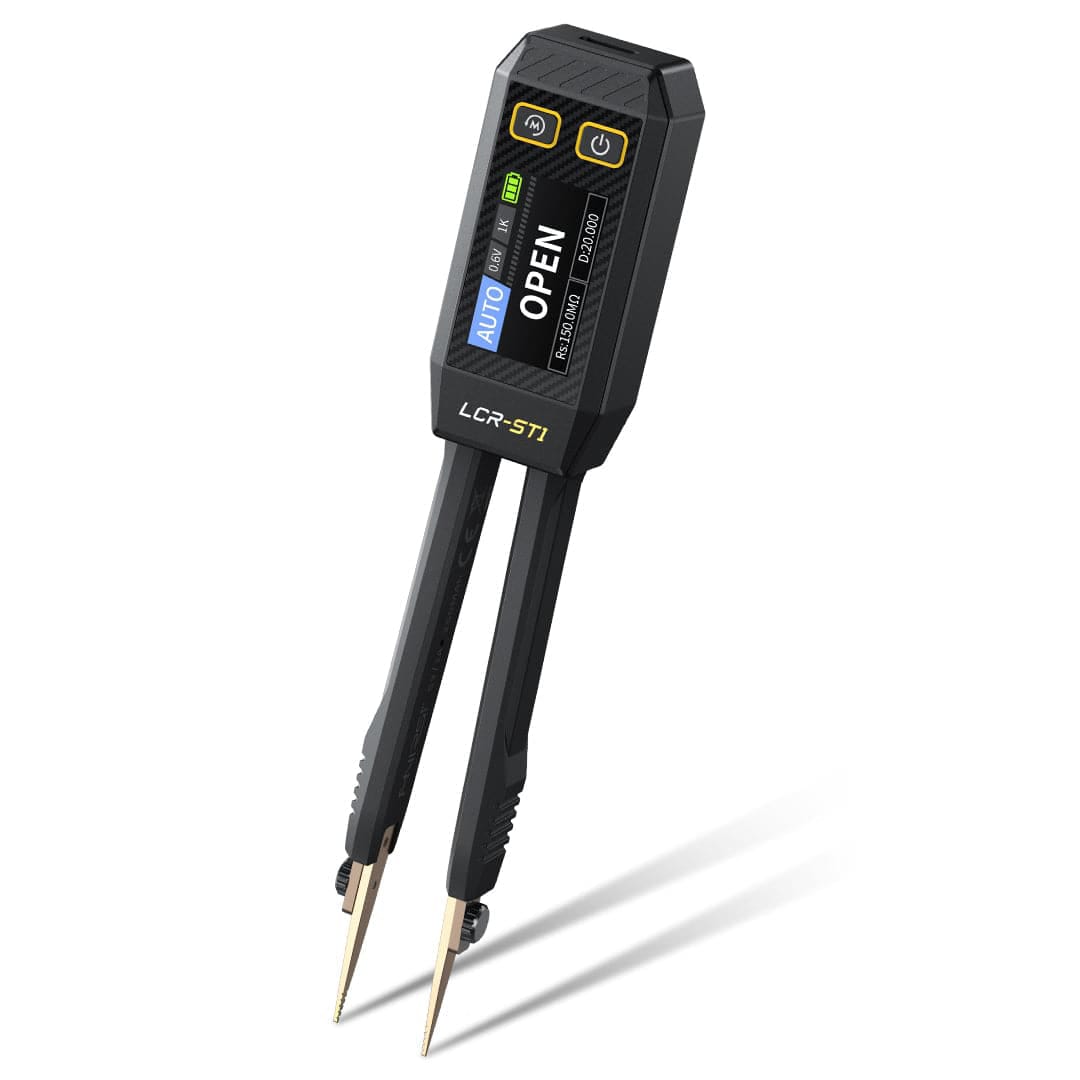

The FNIRSI LCR-ST1 is a portable, tweezer-style LCR meter designed for testing SMD (Surface Mount Device) components. It automatically identifies resistance, capacitance, and inductance, displaying primary and secondary parameters on a 1.14-inch HD color screen.

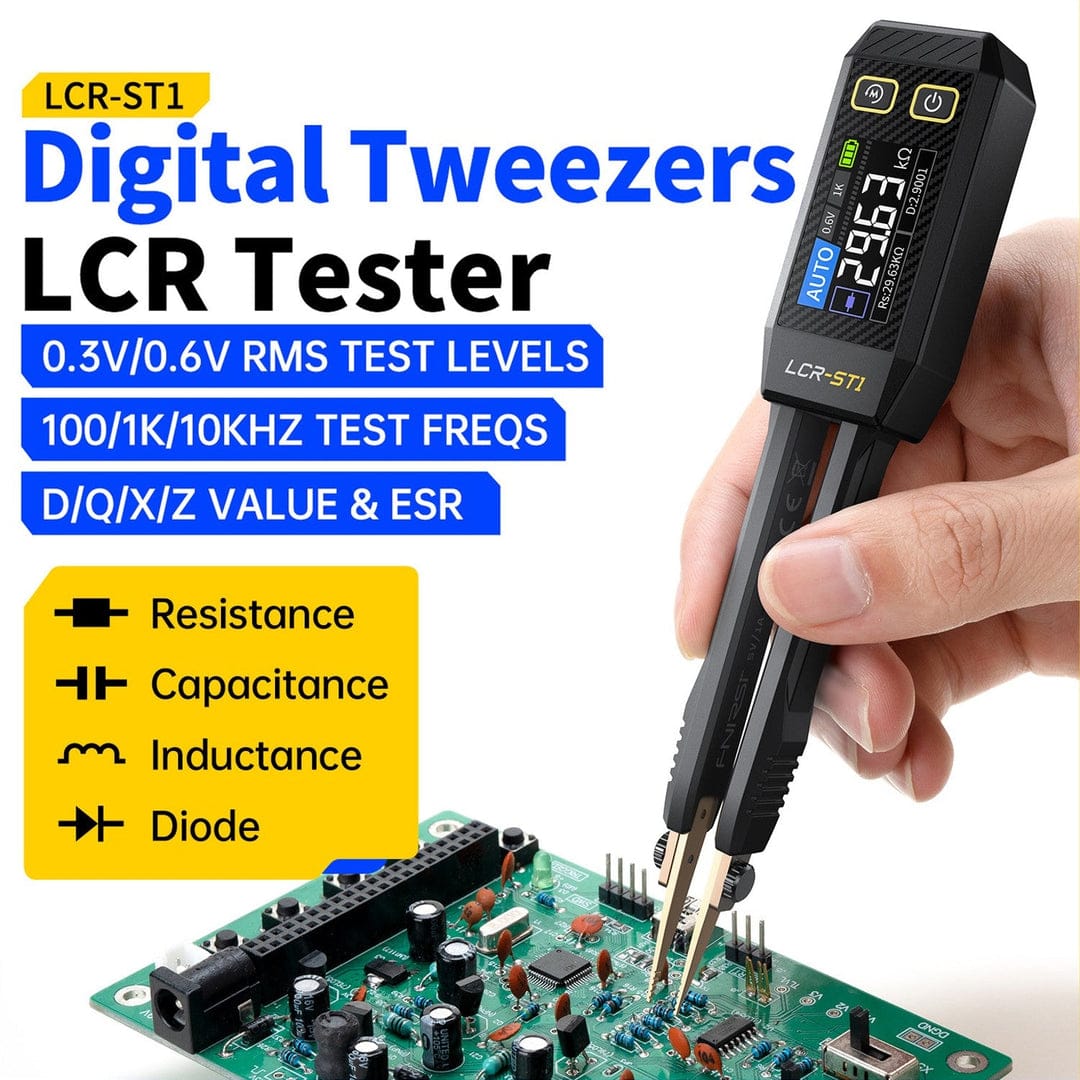

Technical Capabilities:
-Auto Recognition: Automatically detects component type (R, L, or C) and selects appropriate measurement range
-Frequency & Voltage: Supports three test frequencies (100Hz, 1kHz, 10kHz) and two RMS test levels (0.3V, 0.6V)
-Secondary Parameters: Displays ESR, D value, Q value, Z value, and X value alongside main readings
-Data Management: Internal storage for test records with Excel/CSV export capability via a PC connection
-Design: Tweezer-shaped for narrow space operation with magnetic adsorption for easy storage

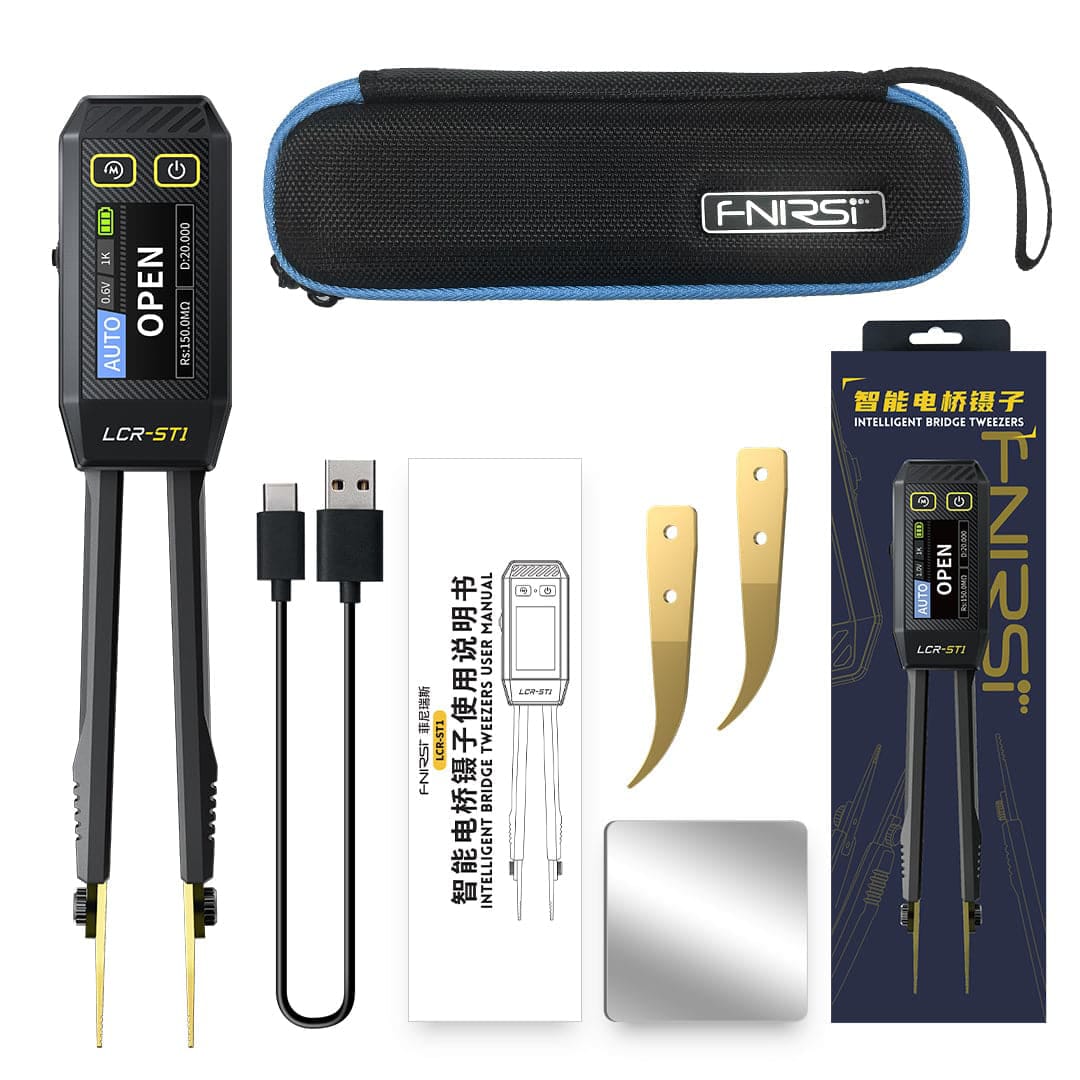

What`s in the box:
-1 x LCR-ST1 Smart Tweezer
-1 x Tool Bag
-1 x USB Type-C Data Cable

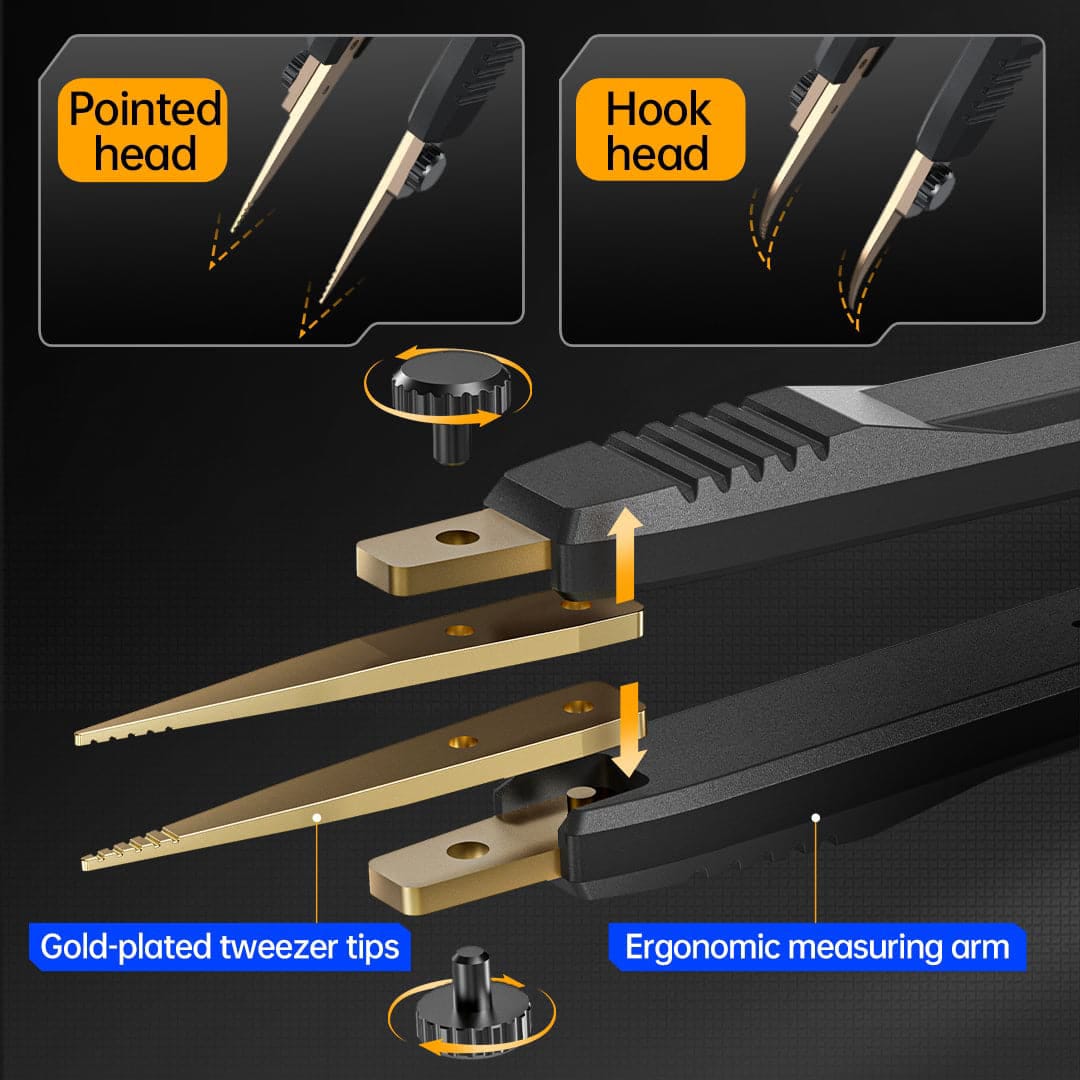

-1 x Pair of Pointed Tweezer Heads (Interchangeable)
-1 x Pair of Hook Tweezer Heads (Interchangeable)
-1 x Magnetic Patch
-1 x User Manual
