Description

Technical Product Overview:

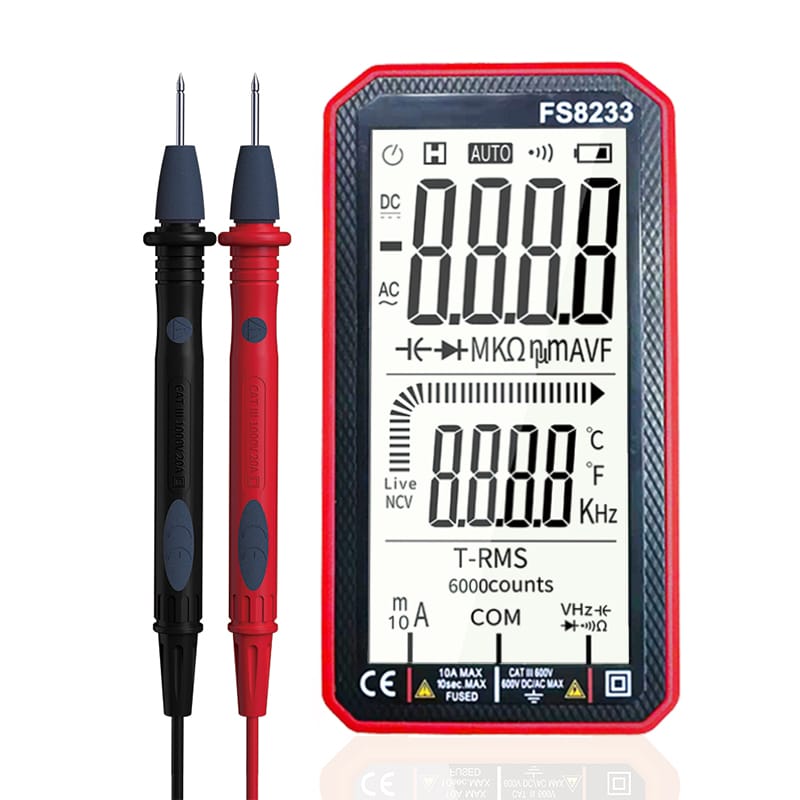

The LE Smart Series FS8233 is a high-precision, 6000-count TRMS Digital Multimeter featuring an edge-to-edge 4.8-inch backlit LCD interface. Engineered for rapid diagnostic cycles, the unit utilizes a “Smart-Logic” processor that automatically identifies and selects the appropriate measurement mode based on probe input, eliminating manual dial errors. The device incorporates specialized Non-Contact Voltage (NCV) sensing and “Live-Line” detection for forensic cable tracing and phase identification. With integrated temperature monitoring and a True Root Mean Square (TRMS) sensing circuit, it delivers laboratory-grade accuracy in high-noise electrical environments.

Key Technical Features:
-Automatic Function Recognition: Intelligent sensor technology automatically toggles between AC/DC Voltage, Resistance, and Continuity without manual switching

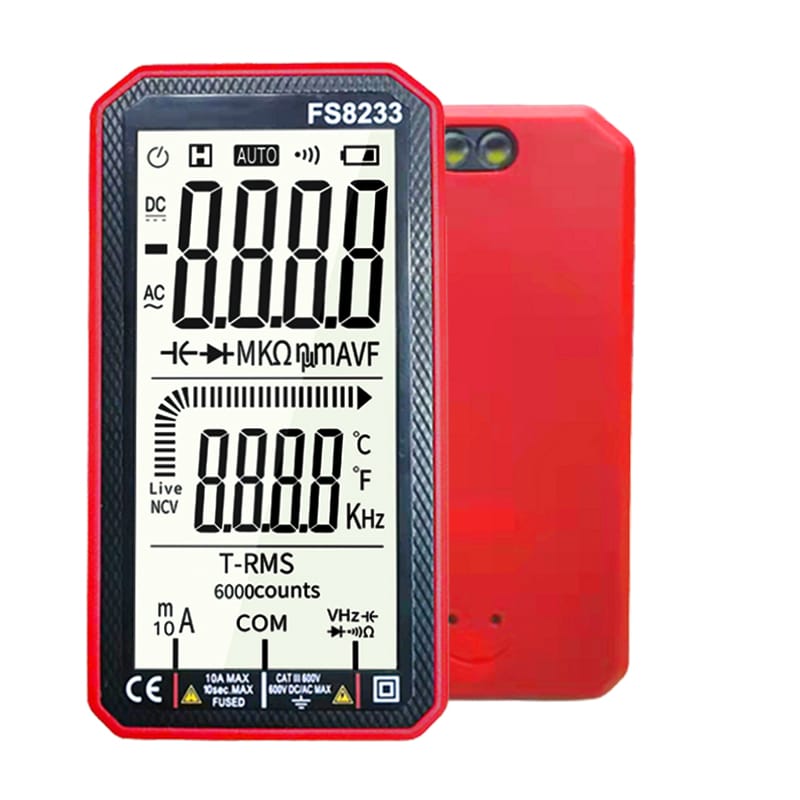

-4.8″ High-Definition Interface: Oversized backlit display provides simultaneous multi-metric feedback and high visibility in low-lumen workspaces

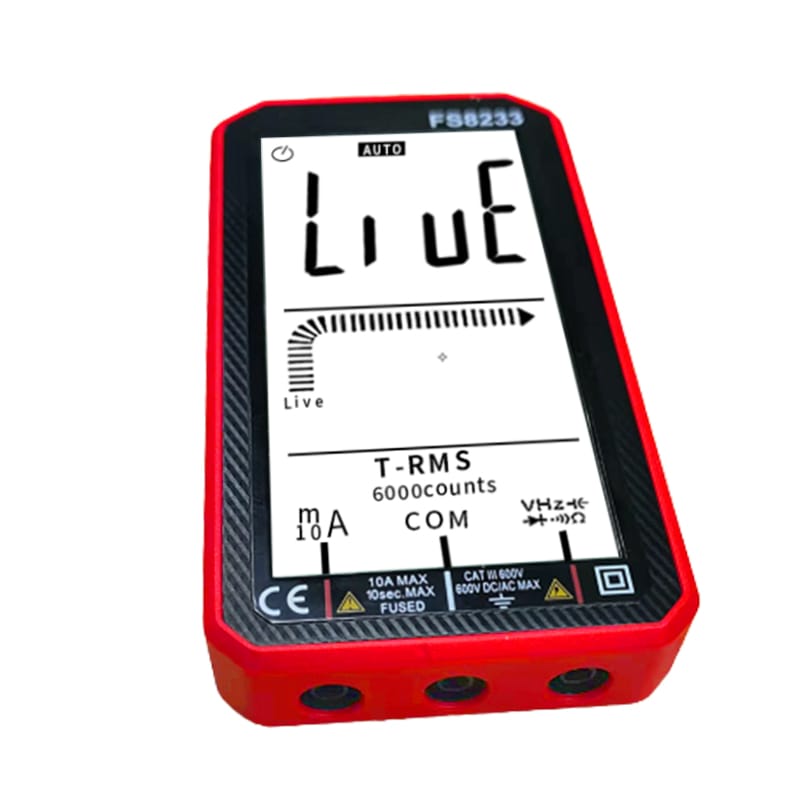

-Advanced Safety Sensing: Integrated NCV (Non-Contact Voltage) and Live Cable Detection allow for safe identification of concealed live wires
-Industrial Accuracy (TRMS): 6000-count resolution ensures precise readings for complex waveforms and fluctuating electrical loads

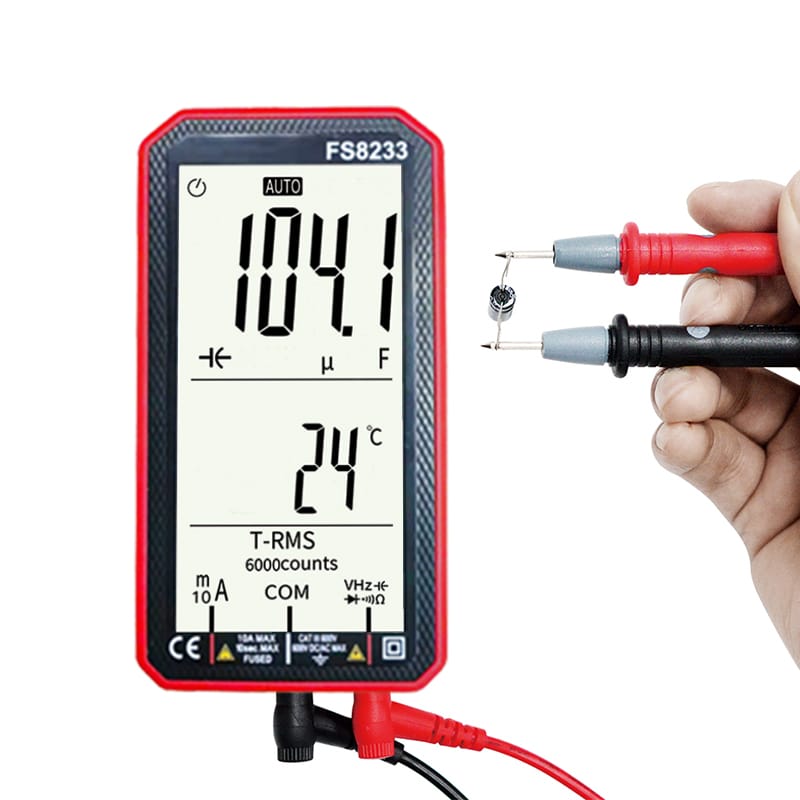

-Thermal Diagnostic Capability: Wide-spectrum temperature sensing (-40°C to 1000°C) for identifying overheated components or HVAC system profiling

LE Smart Series FS8233 Hardware Specifications:
-Model / MPN: FS8233
-Display: 4.8-inch Backlit LCD (6000 Counts)
-Accuracy Standard: True RMS (TRMS)
-Voltage Range: AC/DC up to 600V
-Temperature Range: -40°C to 1000°C (-40°F to 1832°F)
-Weight: ~150g (Forensic Correction)
-Power Source: 2 × 1.5V AAA Batteries
-Safety Features: NCV Detection, Live Line Test, Flashlight
