Description

Product Overview:

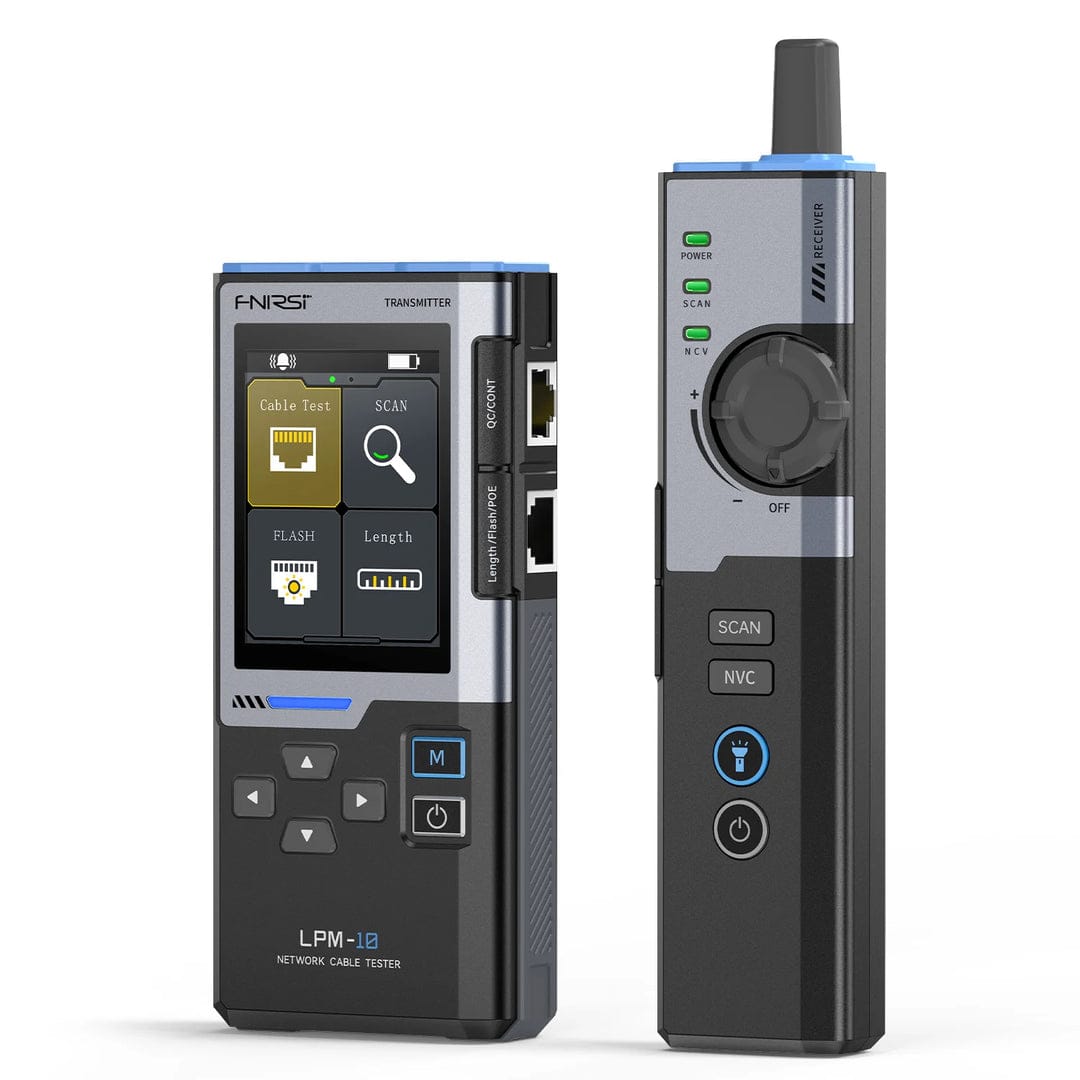

The FNIRSI LPM-10A is a professional network cable tester featuring a 2.4-inch TFT color display. It is designed for measuring cable length, identifying wiring faults, and analyzing Power over Ethernet (PoE) configurations. The device supports normal and anti-interference tracing modes for high-noise environments and includes integrated NCV voltage detection for safety.

Key Features:
-PoE Analysis: Identifies power supply mode, protocol standard (IEEE 802.3af/at), and voltage levels
-Tracing Modes: Normal and digital anti-interference modes to locate network and telephone cables

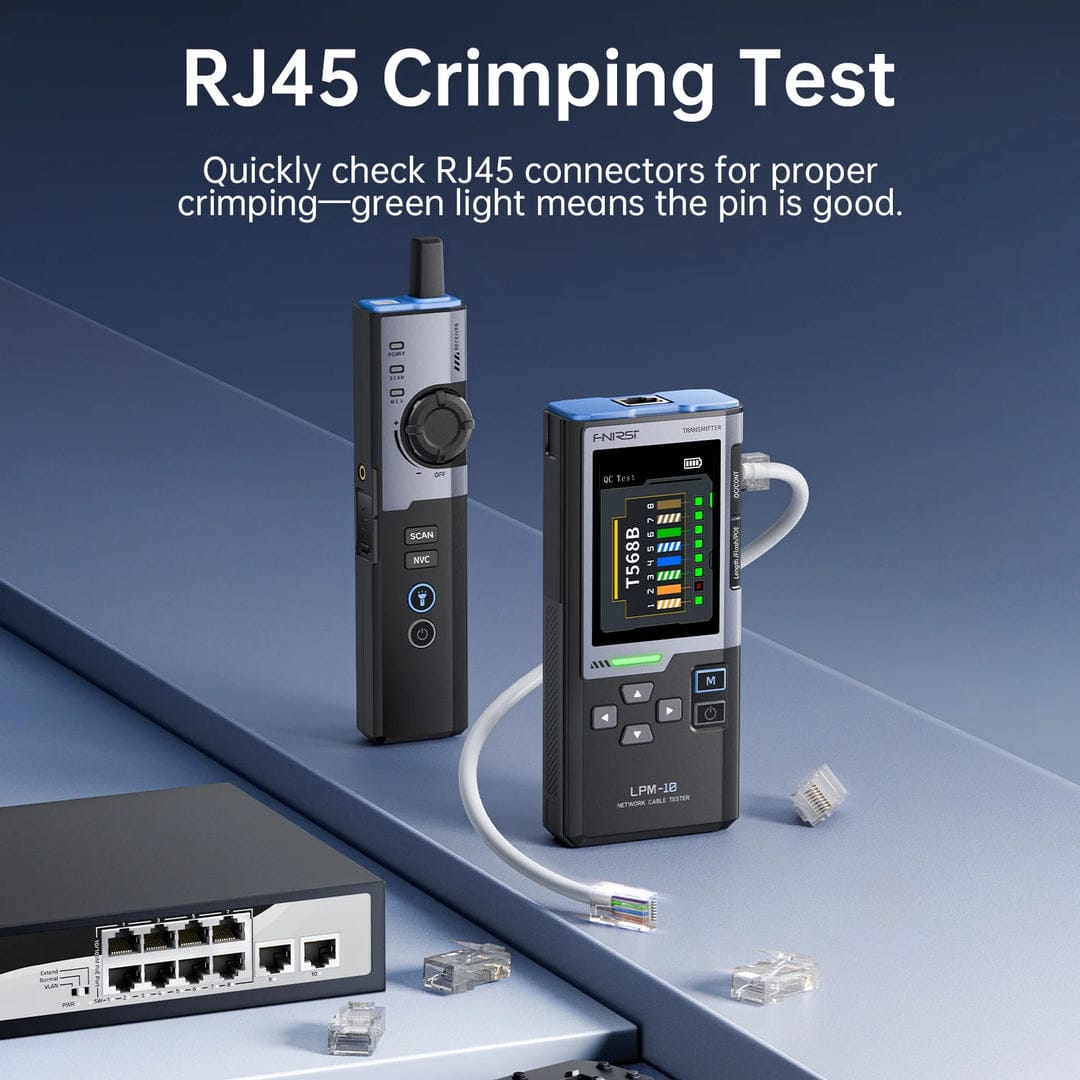

-Cable Testing: One-touch length measurement (±3.2m accuracy over 100m) and RJ45 crimp/continuity checks
-Network Diagnostics: Includes port flashing for port identification and duplex mode speed tests
-Safety & Utility: Non-contact voltage (NCV) detection and built-in LED flashlight for dark environments

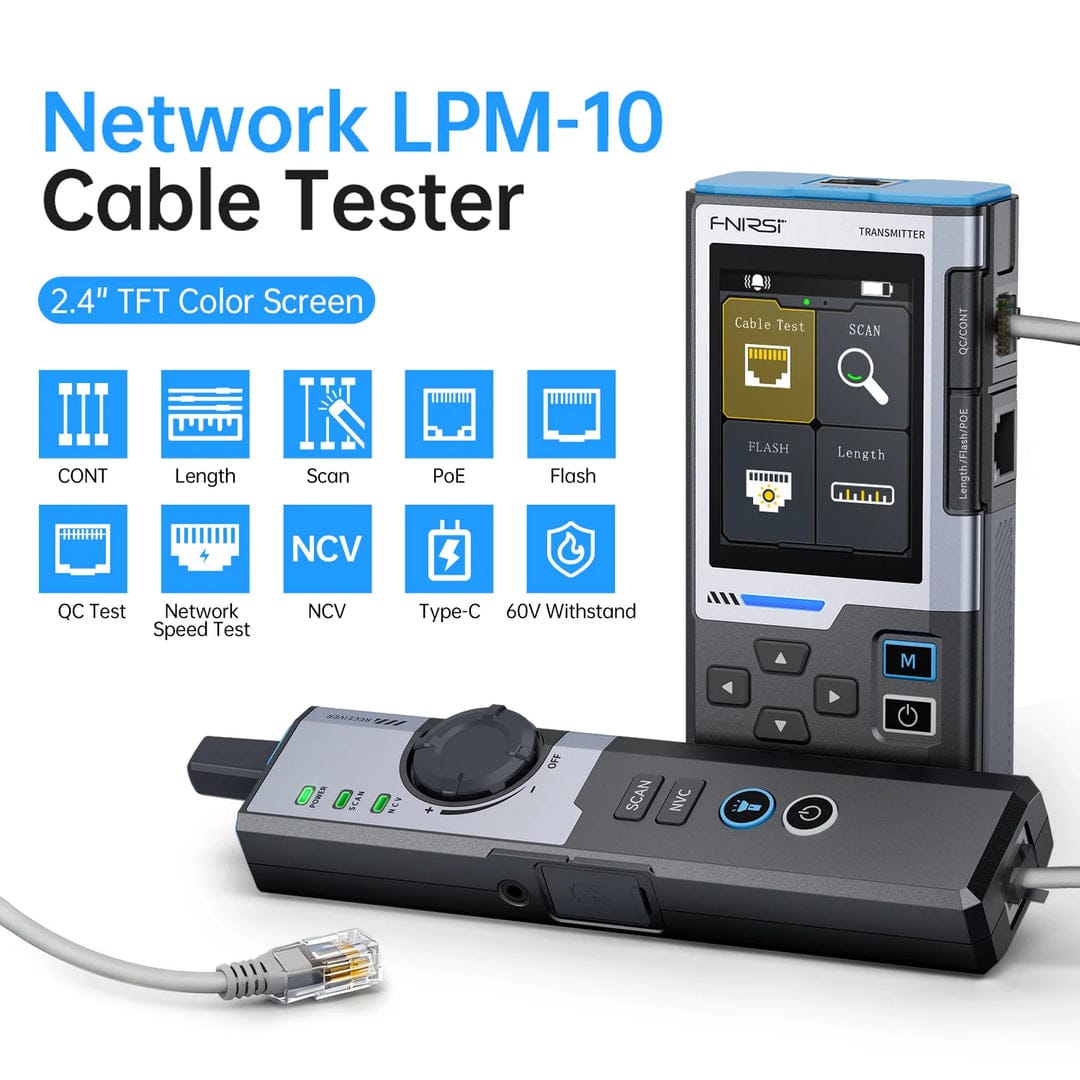

Technical Specifications:
-Display: 2.4-inch TFT Color LCD
-Battery: 1500mAh Lithium-ion (Rechargeable)
-Charging: USB Type-C (5V/1A)
-Runtime: Approximately 10 hours continuous use
-Operating Temp: 0°C to 50°C
-Dimensions: 152 x 68 x 31 mm

Package Contents:
-1 x FNIRSI LPM-10A Host
-2 x Type-C Charging Cables
-1 x Alligator Clip
-1 x Headphone Cable
-1 x RJ45 to RJ11 Cable
-1 x RJ45 Cable
-1 x Storage Bag
