Description

Product Overview:

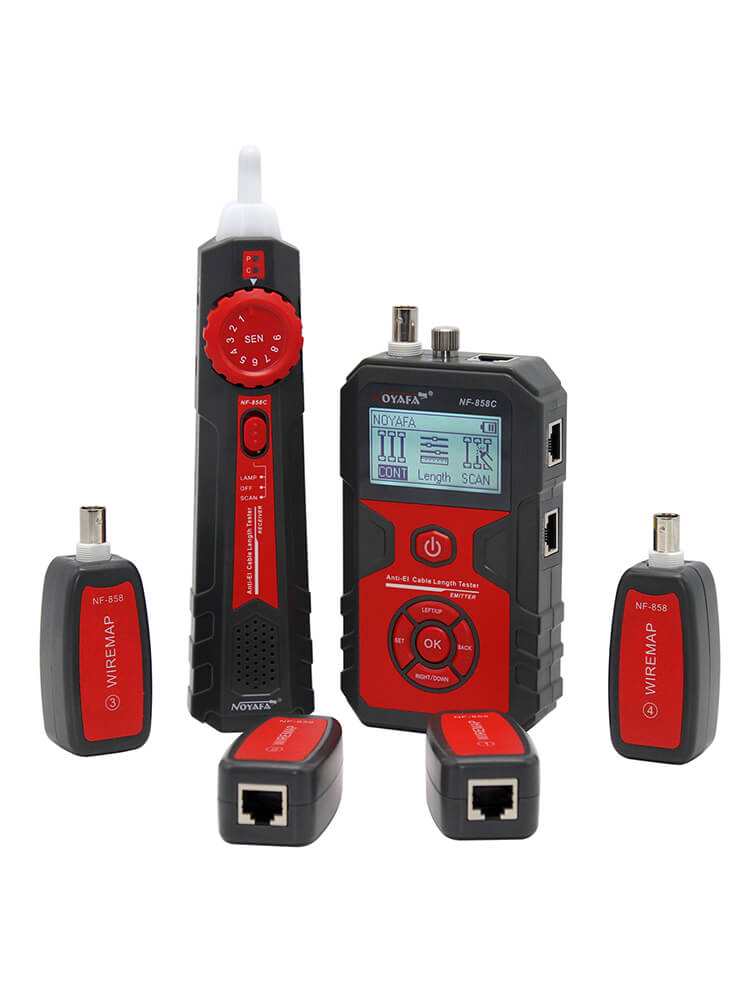

The Noyafa NF-858C is a professional wire tracker kit designed to trace and locate communications cables without AC current noise interference. It features advanced diagnostic capabilities for LAN and coaxial cables, including length measurement and PoE voltage detection. The device is equipped with a Visual Fault Locator (VFL) and internal memory for efficient field testing.

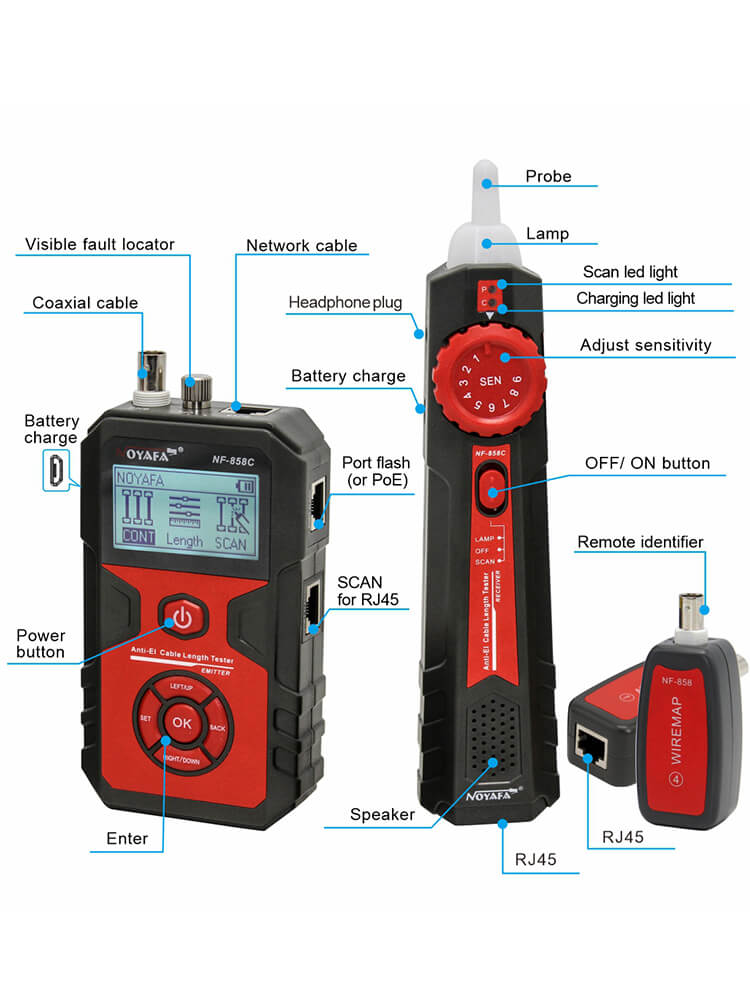

Features:
-Cable Tracking: Trace and locate UTP/STP RJ45 and BNC cables
-Hub Blink Function: Locates network ports by triggering a flashing light on a connected Hub or Switch
-PoE Testing: Identifies power-supplying pins and detects the specific voltage level
-Telephone Diagnostics: Identifies telephone cable conditions (Tip or Ring) and polarity (anode or cathode)
-Length Measurement: Measures the physical length of both LAN and coaxial cables
-Fault Checking: Checks for open circuits, short circuits, and cross-over connections
-Integrated VFL: Includes a Visual Fault Locator for fiber optic or continuity testing
-Data Management: Features built-in memory for storing test results

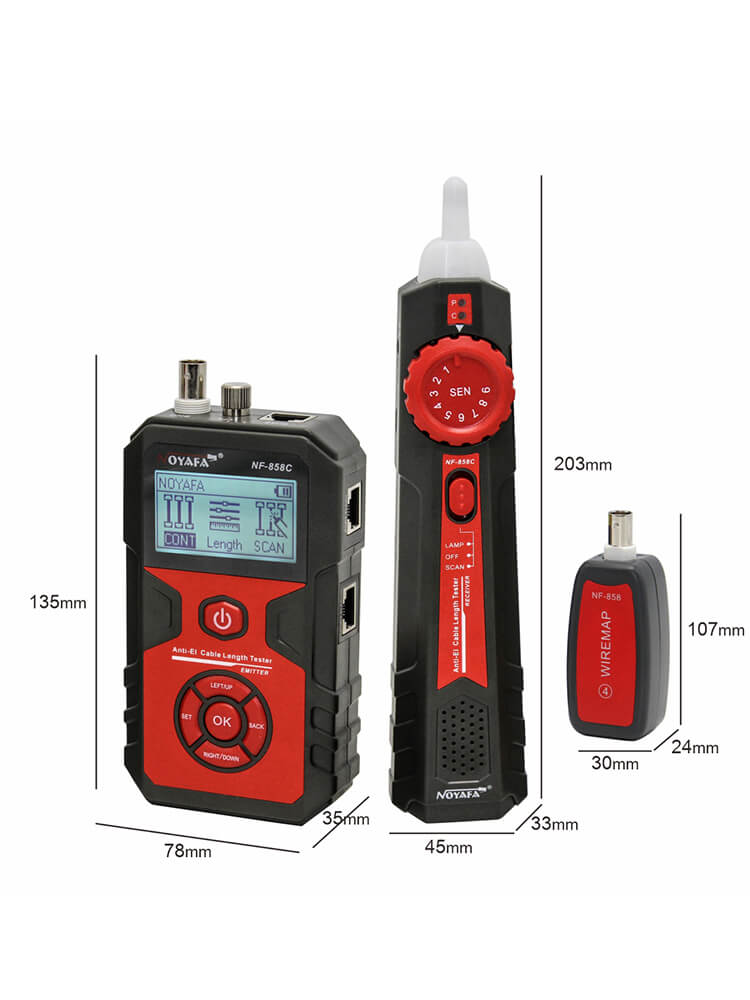

Specifications:
-Model Number: NF-858C
-Tracking Types: UTP/STP RJ45, BNC
-Length Testing: BNC, RJ45
-Power Supply: 3.7V lithium battery
-Certifications: RoHS, FCC, CE, and ISO 9001
-Manufacturing: Manufactured in China

Please take note: No batteries included; the 3.7V lithium battery must be bought separately.
