Product Overview:

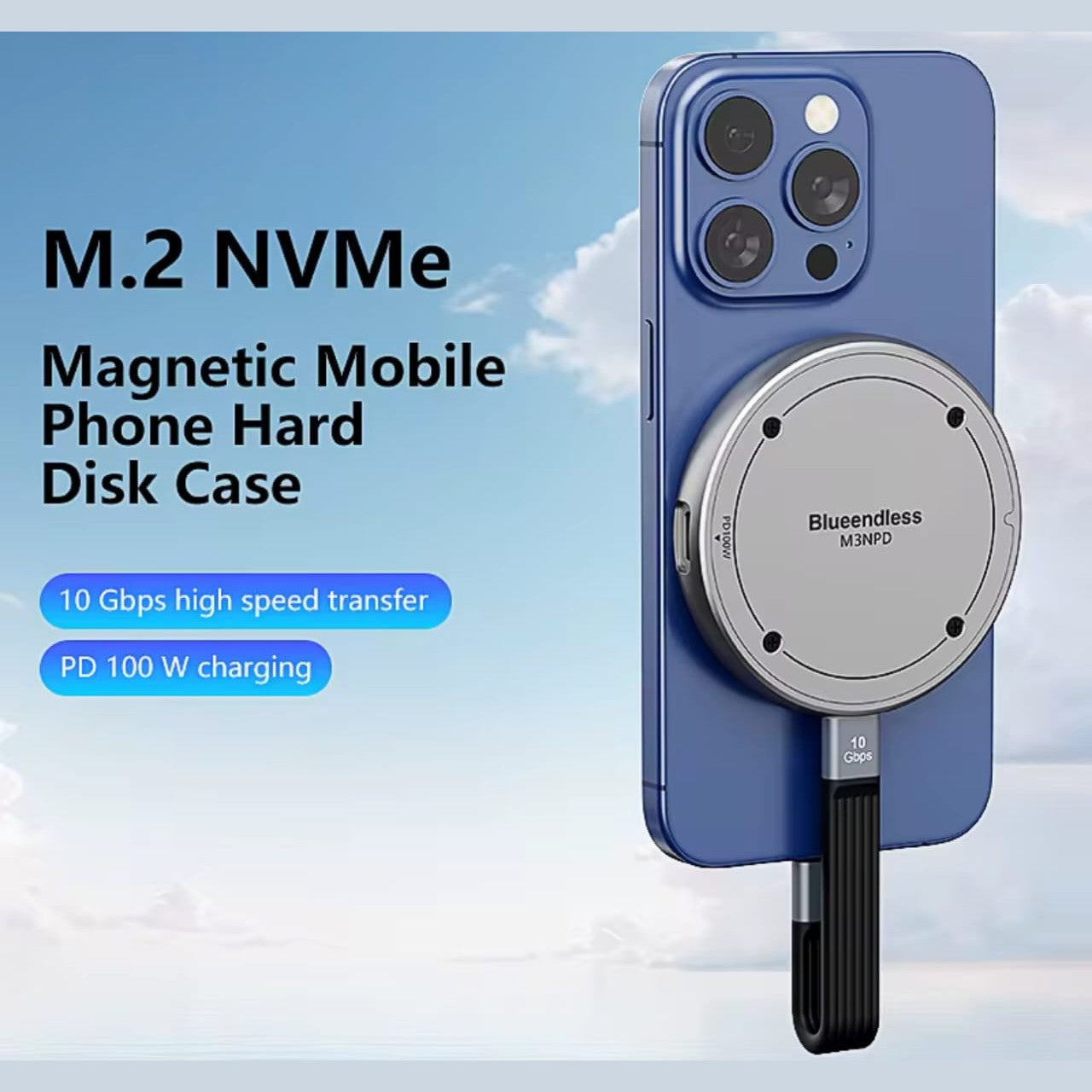

The M.2 NVMe SSD Enclosure is a compact storage housing designed specifically for 2230 and 2242 size SSDs. It features a USB 3.2 Gen 2 Type-C interface and a built-in magnetic structure for attachment to compatible mobile devices. The enclosure is constructed from aluminum alloy to provide physical protection for the drive.

Key Applications:
-External Video Storage: Supports direct 4K ProRes video recording and storage for iPhone 15 Pro and Pro Max
-Device Expansion: Increases storage capacity for laptops, mobile phones, iPad Pro, Steam Deck, PS5, and Xbox
-Data Transfer: Facilitates file movement between different operating systems
-Portable Storage: Compact design for mobile data access

Technical Specifications:
-Supported Drive Type: M.2 NVMe (Protocols: NVMe)

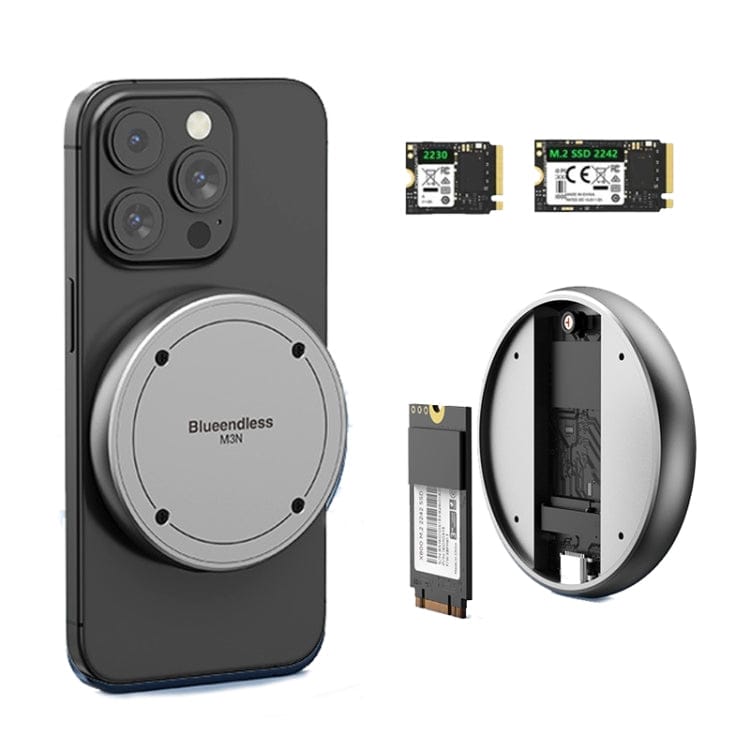

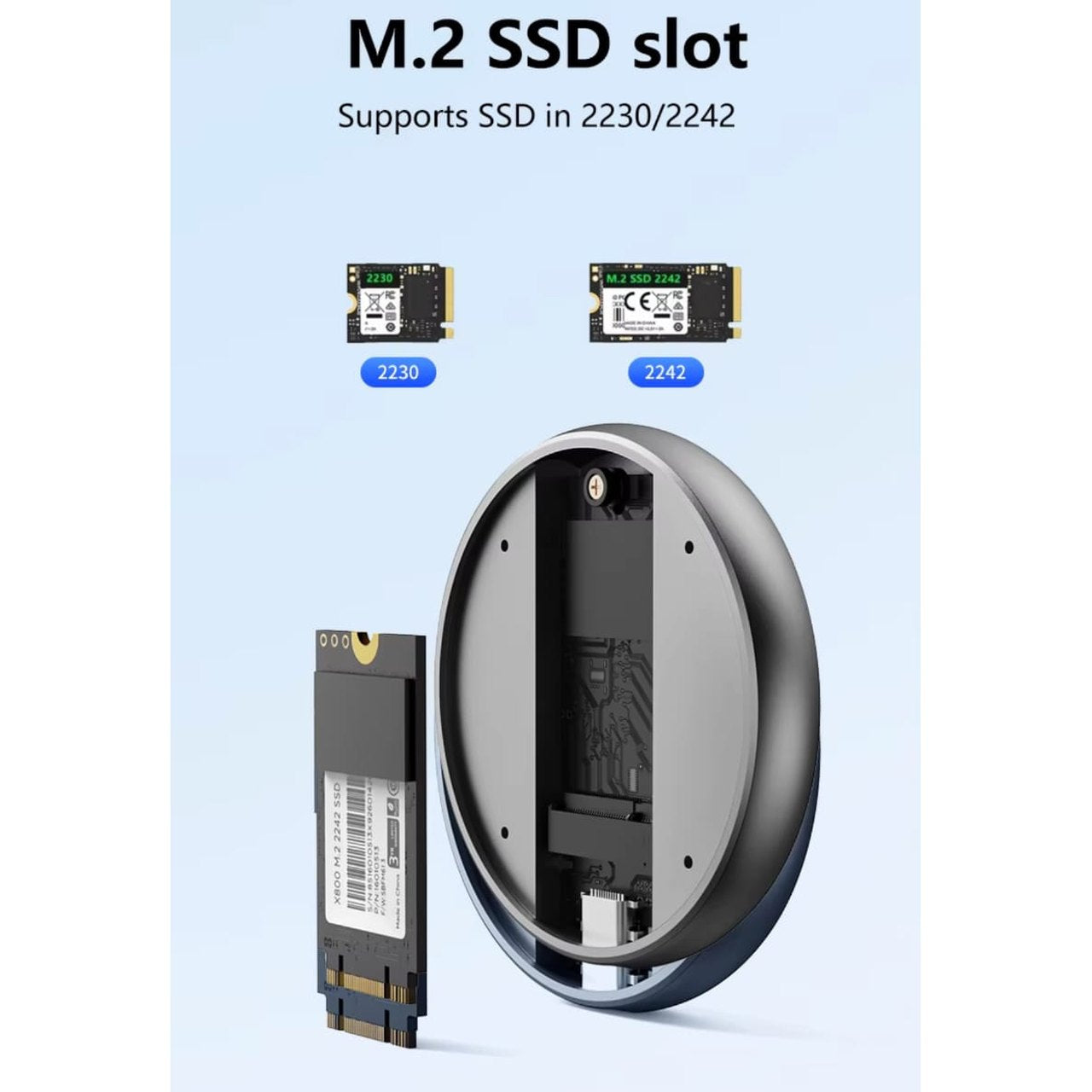

-Compatible Drive Sizes: 2230 / 2242
-Interface: USB 3.2 Gen 2 Type-C
-Maximum Transmission Rate: 10Gbps
-Maximum Capacity Support: 2TB

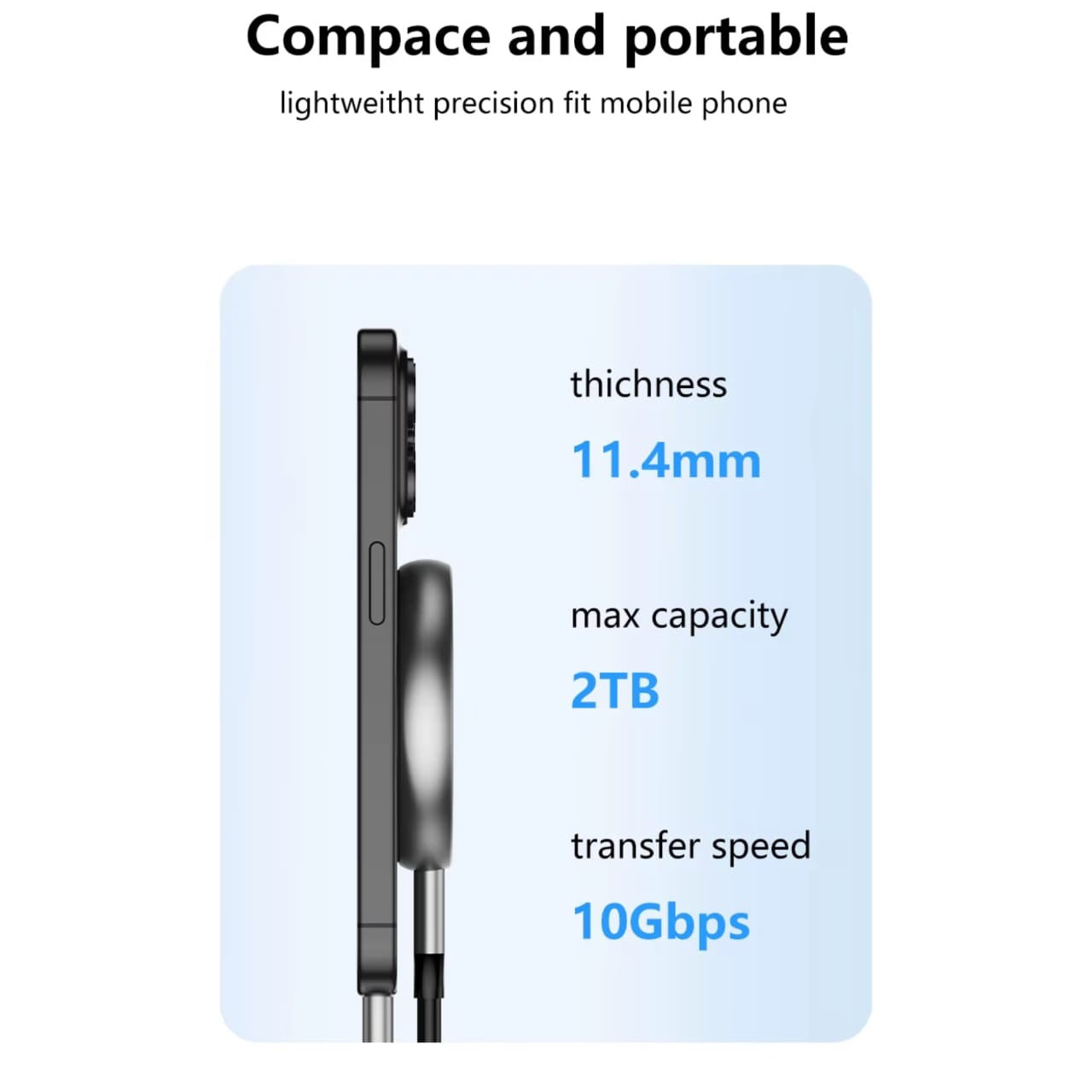

-Product Dimensions: 69.5 x 69 x 11.4mm
-Material: Aluminum alloy
-System Compatibility: Mac OS, Windows, Linux, Android

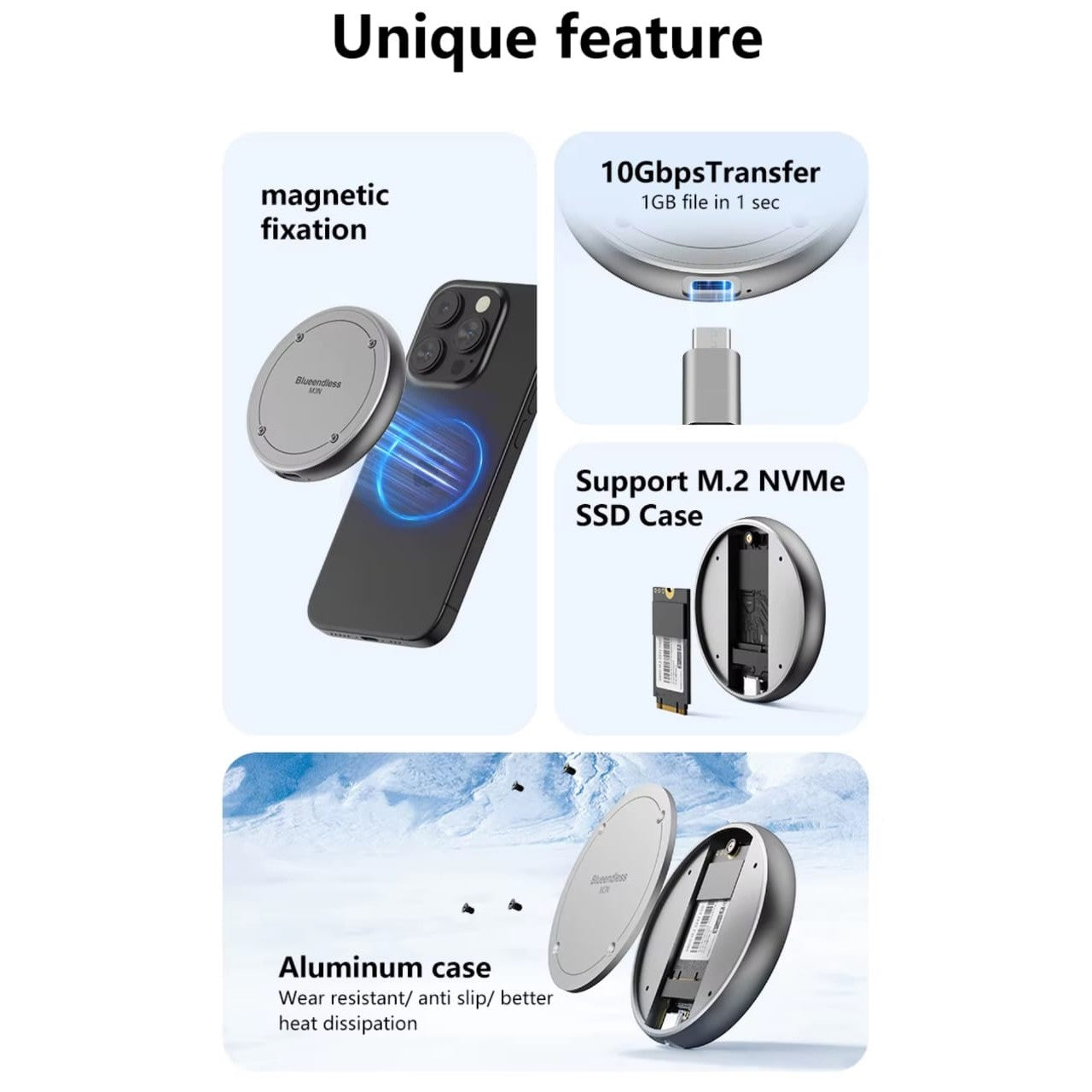

-Feature: Integrated magnetic adsorption structure
-Note: SSD cards are not included with this enclosure

Product Details:
-Material: Aluminum alloy body
-Connection Method: USB Type-C plug and play
-Connectivity Technology: USB 3.2 Gen 2
-Power Source: Bus-powered via USB-C connection
-Design: Slim magnetic-mount enclosure
-Mounting Type: Magnetic attachment or external cable connection
