Description

Product Overview:

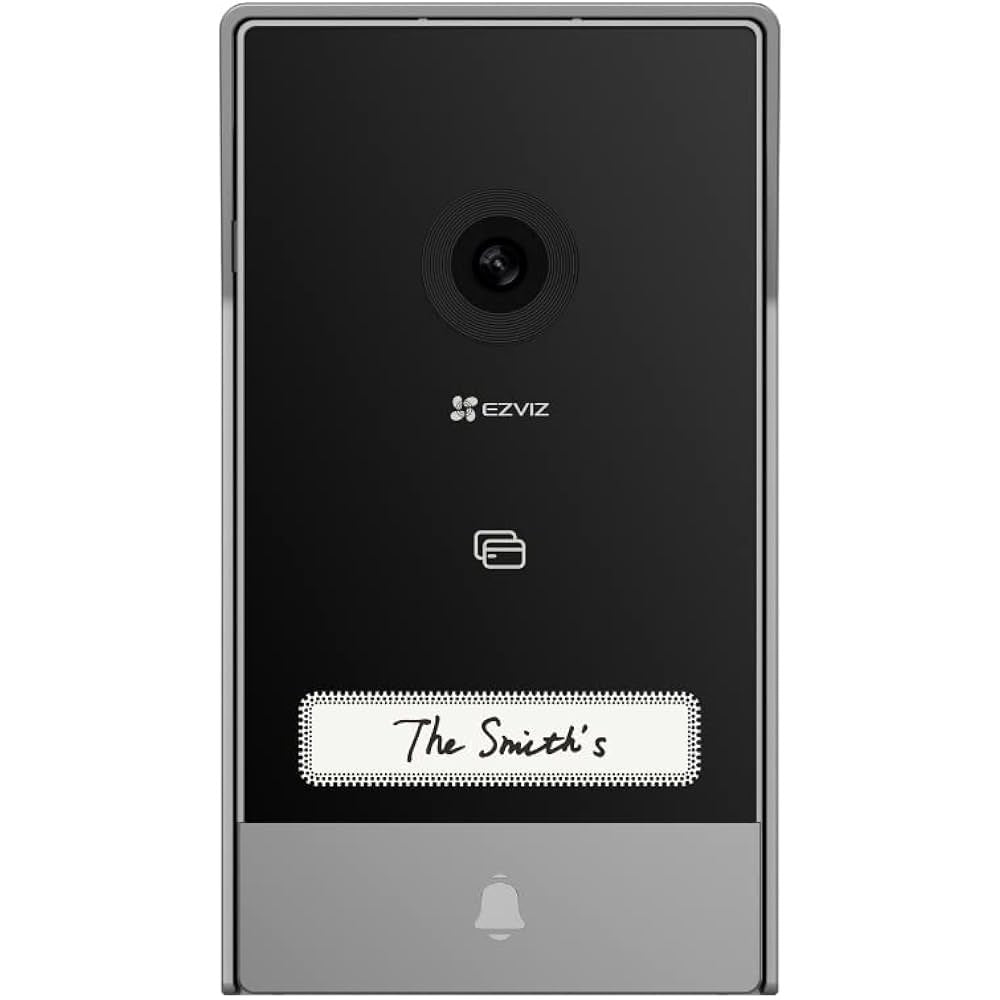

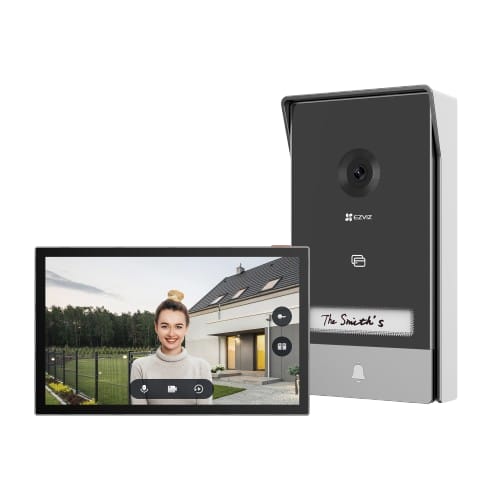

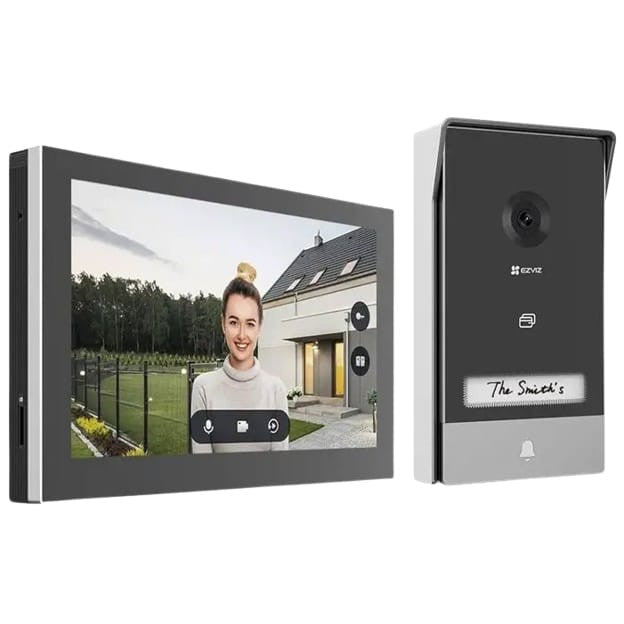

The EZVIZ HP7 (CS-HP7-R105-1W2TFC) is a high-definition 2K smart video doorphone system designed to replace traditional intercoms with an internet-connected security solution. This kit features a 2-in-1 outdoor video doorbell and a 7-inch color touch screen monitor, allowing homeowners to view, talk, and grant access to visitors remotely via the EZVIZ App.
Engineered for villas and modern residences, the HP7 provides 2048 × 1296 resolution video with a wide 162° diagonal viewing angle. The system enhances perimeter safety through smart human motion detection, sending real-time notifications to mobile devices when activity is detected.

Specifications Outdoor Intercom & Camera:
-Image Sensor: 1/2.7″ Progressive Scan CMOS
-Resolution: 2K (2048 × 1296)
-Lens: 2.0 mm @ F2.2 (162° Diagonal FOV)
-Night Vision: 850 nm IR light (up to 6m) with auto-switching filter
-Video Compression: H.265 / H.264
-Wiring: 2-wire connection (4-wire capable) for digital signal transmission
-Durability: IP65-rated waterproof housing with shield cover
-Operating Temperature: -30°C to 60°C

Indoor Touch Monitor:
-Display: 7-inch color touch screen (1024 × 600)
-Connectivity: Dual-band Wi-Fi (2.4GHz / 5GHz) and RJ45 Ethernet port
-Storage: MicroSD card slot (supports up to 512GB) and EZVIZ CloudPlay
-Audio: Built-in high-sensitivity microphone and high-power speaker
-Functionality: 20 selectable ringtones, live view, playback, and two-way talk

Access Control & Integration:
-Unlock Methods: RFID badges (3 included), remote App unlock, and indoor display unlock
-Gate Control: Supports two wiring ports for automated gate or electric strike plate (12V/2A)
-Detection: Smart human motion detection and lingering detection

What’s in the Box:
-1 x 7-inch Touch Screen Monitor (Including Wall Bracket)
-1 x Outdoor Intercom Panel
-1 x DC 24V / 1A Power Adapter
-1 x DC 24V Power Supply Jack Connector Cable
-3 x RFID Badges
-2 x Name Cards
-2 x Screw Kits & 1 x Screwdriver
-2 x Drill Templates (Monitor & Intercom)
-Wires and Wire Connectors
-1 x Quick Start Guide & Regulatory Information
