Description

Product Overview:

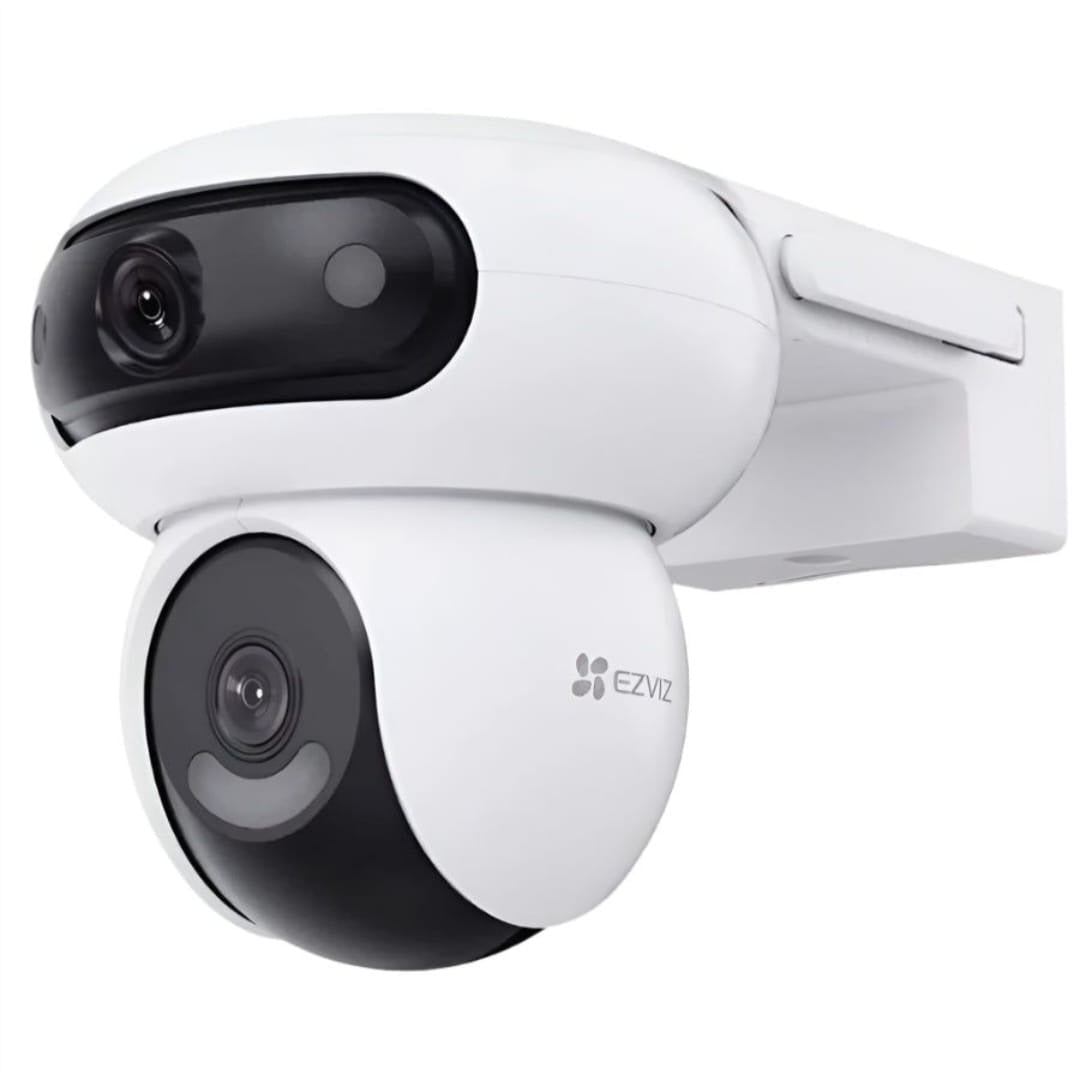

The EZVIZ H90 Dual is a 2K+ dual-lens smart home Wi-Fi camera designed for comprehensive 360-degree protection. It utilizes two independent lenses: a top 2.8mm wide-angle lens with manual tilt and a bottom 6mm telephoto lens with motorized pan and tilt. Both lenses record in 2K+ resolution (2560 × 1440). The system is equipped with AI-powered human and vehicle shape detection and an automated tracking system that allows the lenses to work in tandem. Built for durability, it features an IP65 weatherproof rating and supports up to 40 meters of color night vision when both lenses are aligned.

Technical Specifications:
-Image Sensors: Dual 1/3″ Progressive Scan CMOS
-Top Lens: 2.8mm @ F1.6 (FOV: 110° Diagonal, 96° Horizontal, 54° Vertical)
-Bottom Lens: 6mm @ F1.6 (FOV: 60° Diagonal, 52° Horizontal, 28° Vertical)

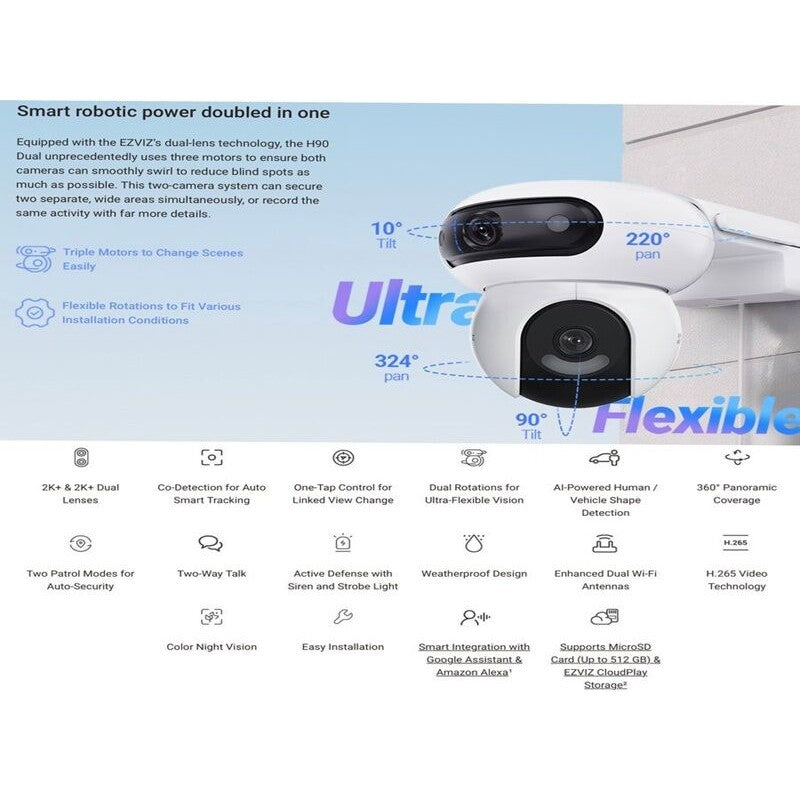

-Pan & Tilt (Top): Pan 220°, Tilt 10° (Manual adjustment)
-Pan & Tilt (Bottom): Pan 324°, Tilt 90° (Motorized)
-Night Vision: 30m IR (Black & White) / Up to 40m Color Night Vision
-Enhancement: 3D DNR and Digital WDR

Video & Audio:
-Resolution: Dual 2K+ (2560 × 1440)
-Compression: H.265 / H.264
-Audio: Integrated Two-way Talk

Network & Intelligence:
-AI Detection: Human Shape Detection and Vehicle Shape Detection
-Smart Features: Auto Tracking, Motion Detection, and Customized Alert Areas
-Connectivity: 2.4 GHz Wi-Fi (802.11b/g/n) and 1 x RJ45 10/100M Ethernet port

Physical & Environmental:
-Weatherproofing: IP65 Rated
-Operating Temperature: -30°C to 50°C
-Power Supply: DC 12V / 1.5A (Max 18W consumption)
-Storage: MicroSD Card slot (Supports up to 512GB) or EZVIZ CloudPlay

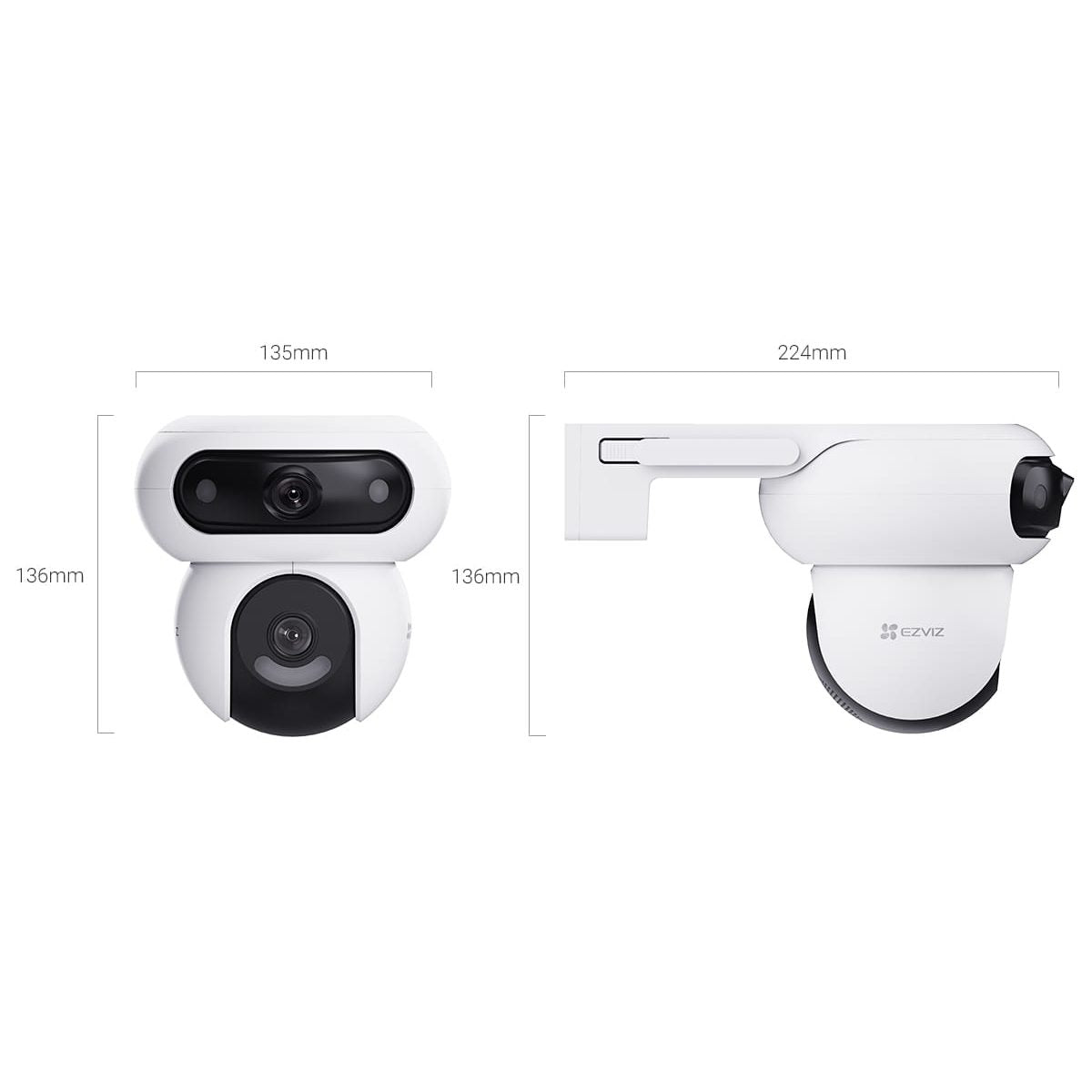

-Dimensions: 224 × 135 × 136 mm
-Net Weight: 723g

What’s in the Box:
-1 x H90 Dual 2K+ Camera
-1 x Power Adapter
-1 x Drill Template
-1 x Waterproof Kit
-1 x Screw Kit
-2 x Regulatory Information
-1 x Quick Start Guide
