Description

Product Overview:
The EZVIZ CS-BW3844-A0E60 is a comprehensive smart home security kit featuring four H3c 2K+ outdoor Wi-Fi cameras and one X5S 8-channel wireless NVR. Each camera is equipped with a 1/2.7” Progressive Scan CMOS sensor, delivering 2K+ resolution (2560 × 1440) and a 4mm lens for a balanced field of view. The system provides IP67-rated weatherproofing, AI-powered human shape detection, and two-way talk capabilities. The included X5S NVR supports up to 8TB of SATA HDD storage (hard drive sold separately), offering a centralized and secure recording solution for 24/7 monitoring.

Technical Specifications:

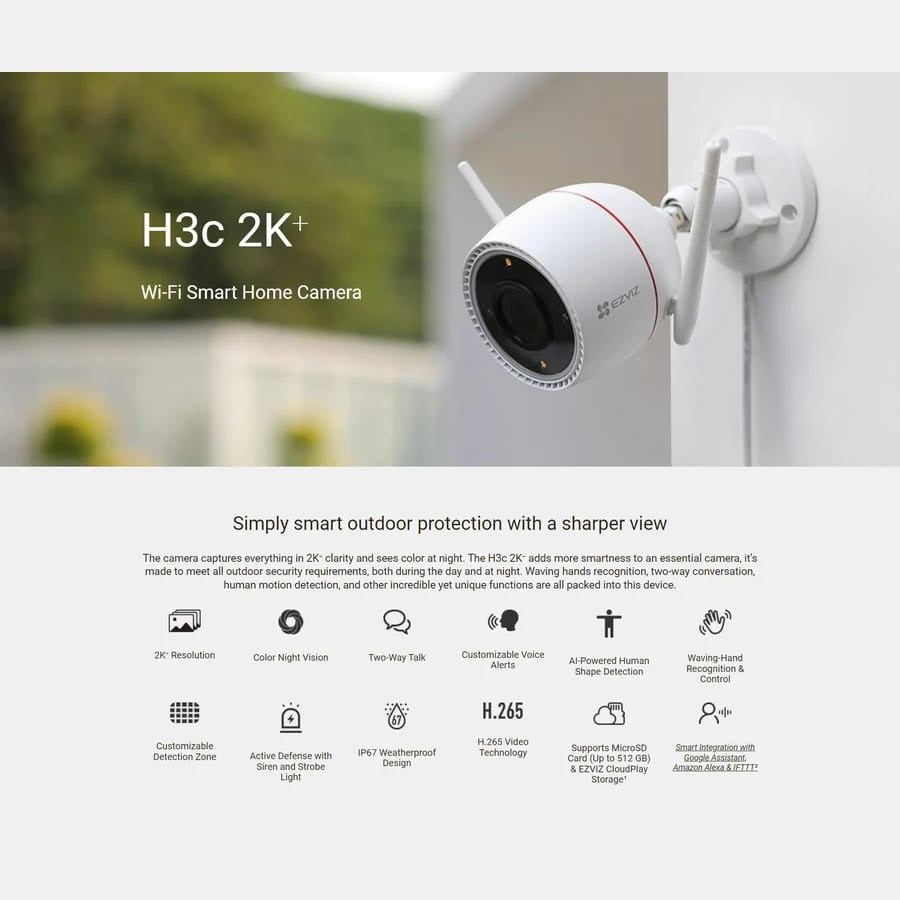

H3c 2K+ Camera Units (x4)
Model: -CS-H3C-R100-1J4WKFL
-Image Sensor: 1/2.7” Progressive Scan CMOS
-Resolution: 2K+ (2560 × 1440)
-Lens: 4mm @ F2.0; View angle: 82° (Horizontal), 98° (Diagonal)
-Night Vision: IR distance up to 30m (98 ft)
-Intelligence: Motion detection and AI-powered human shape detection
-Audio: Integrated Two-way Talk
-Weather Rating: IP67 Weatherproof
-Power: DC 12V / 1A (Max 12W)
-Dimensions: 72 × 72 × 157 mm

X5S Wireless NVR (x1):
-Model: CS-X5S-R100-8W
-Channels: Supports up to 8 Wireless/Wired IPC access points
-Wireless Range: Up to 100m
-Video Output: HDMI (up to 2592 × 1944) and VGA (up to 1920 × 1080)
-HDD Capacity: Supports one 3.5-inch SATA HDD (1TB to 8TB)
-Video Encoding: H.265 and H.264
-Interface: 1 x RJ45 10/100M Ethernet port; 1 x USB 2.0 port

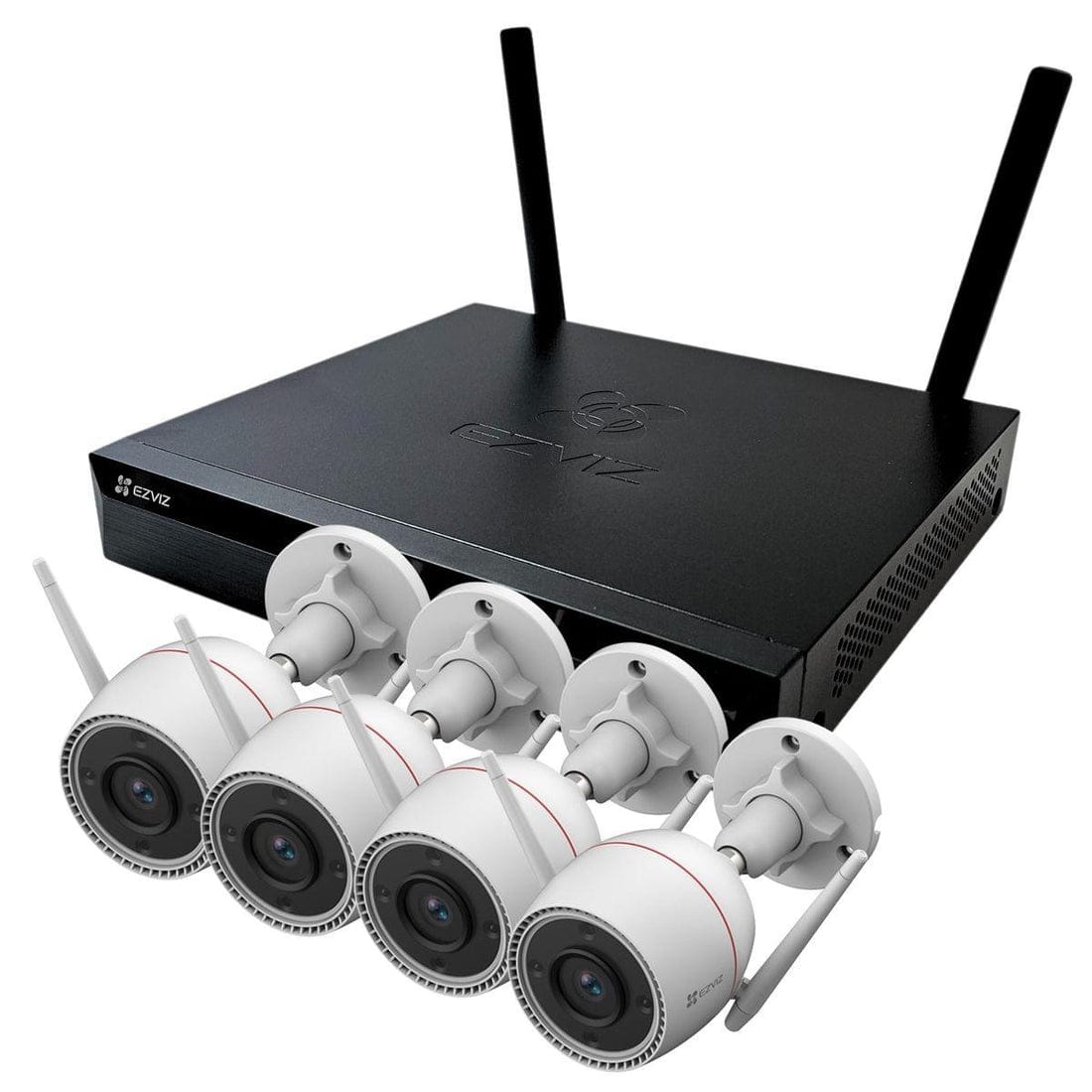

What’s in the Box:
-4 x H3c 2K+ Cameras
-1 x X5S NVR
-1 x HDMI Cable
-5 x Power Adapters (1 for NVR, 4 for cameras)
-1 x Mouse
-4 x Drilling Templates
-4 x Waterproof Kits
-4 x Screw Kits
-1 x Regulatory Information
-1 x Quick Start Guide
