Technical Overview:

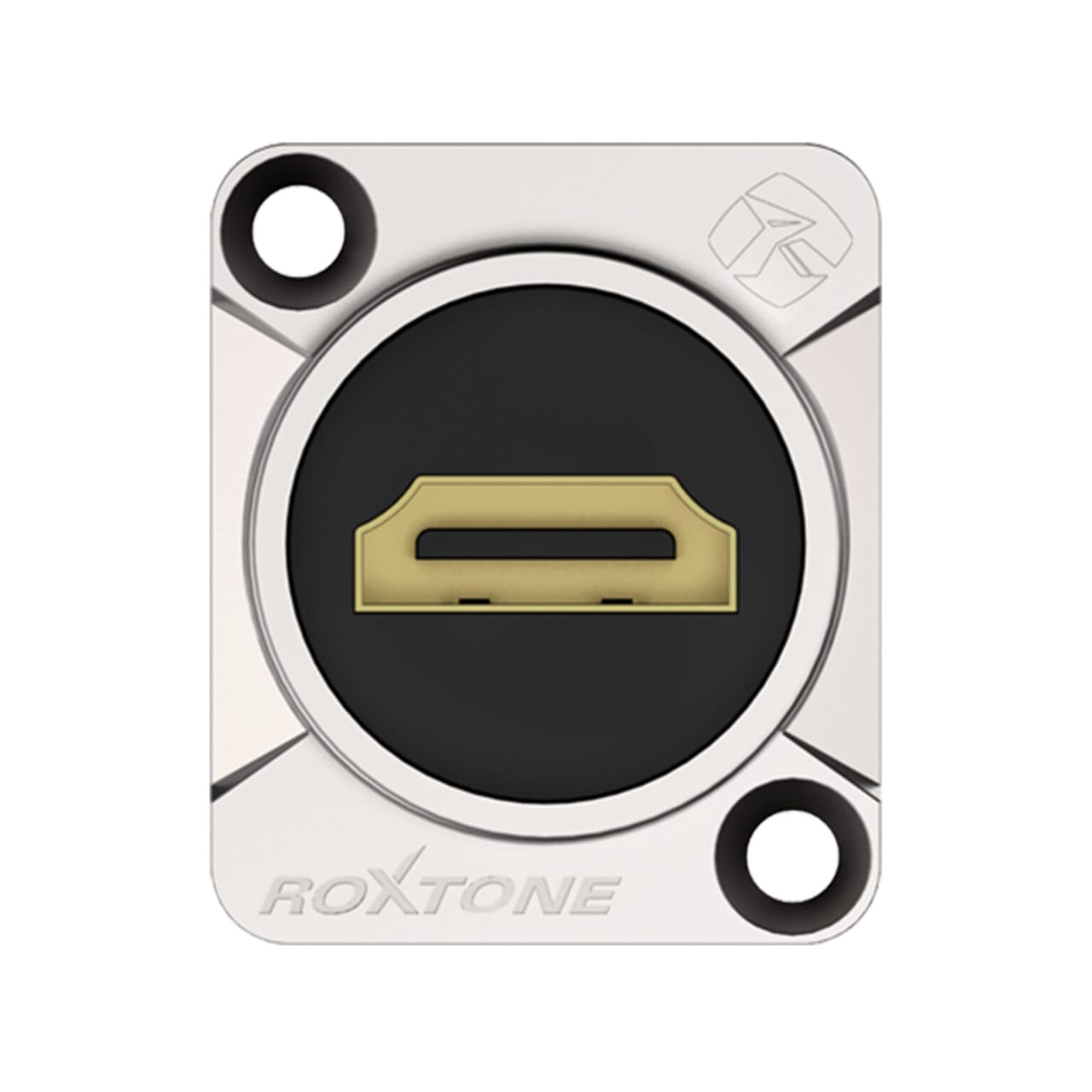

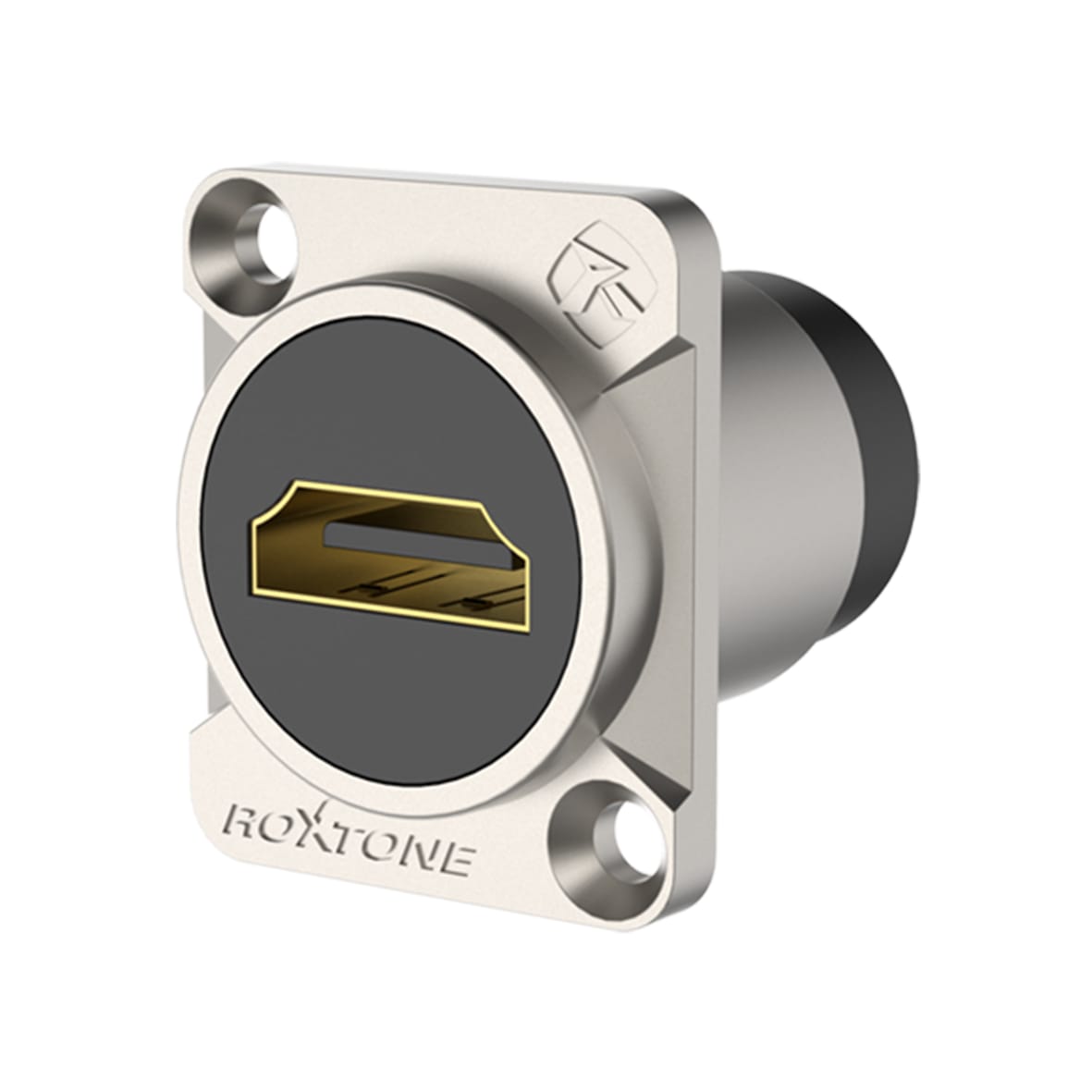

The Roxtone RAH14D is a professional-grade HDMI 1.4 feed-through adapter designed for standardized panel and rack integration. The unit is constructed from a die-cast zinc alloy housing with a nickel-plated finish for electromagnetic shielding and corrosion resistance. It utilizes a “D-size” (Neutrik-style) chassis mount format, making it compatible with universal AV panels, wall plates, and stage boxes. The internal hardware features gold-plated brass contacts to ensure signal integrity for high-definition video up to 4K resolutions and 10.2 Gbps bandwidth. This female-to-female feed-through design allows for direct connection without the requirement for soldering.

Key Technical Specifications:
-Model Number: RAH14D
-HDMI Standard: Version 1.4 (High Speed with Ethernet support)
-Housing Material: Die-cast Zinc Alloy
-Housing Finish: Nickel Plated

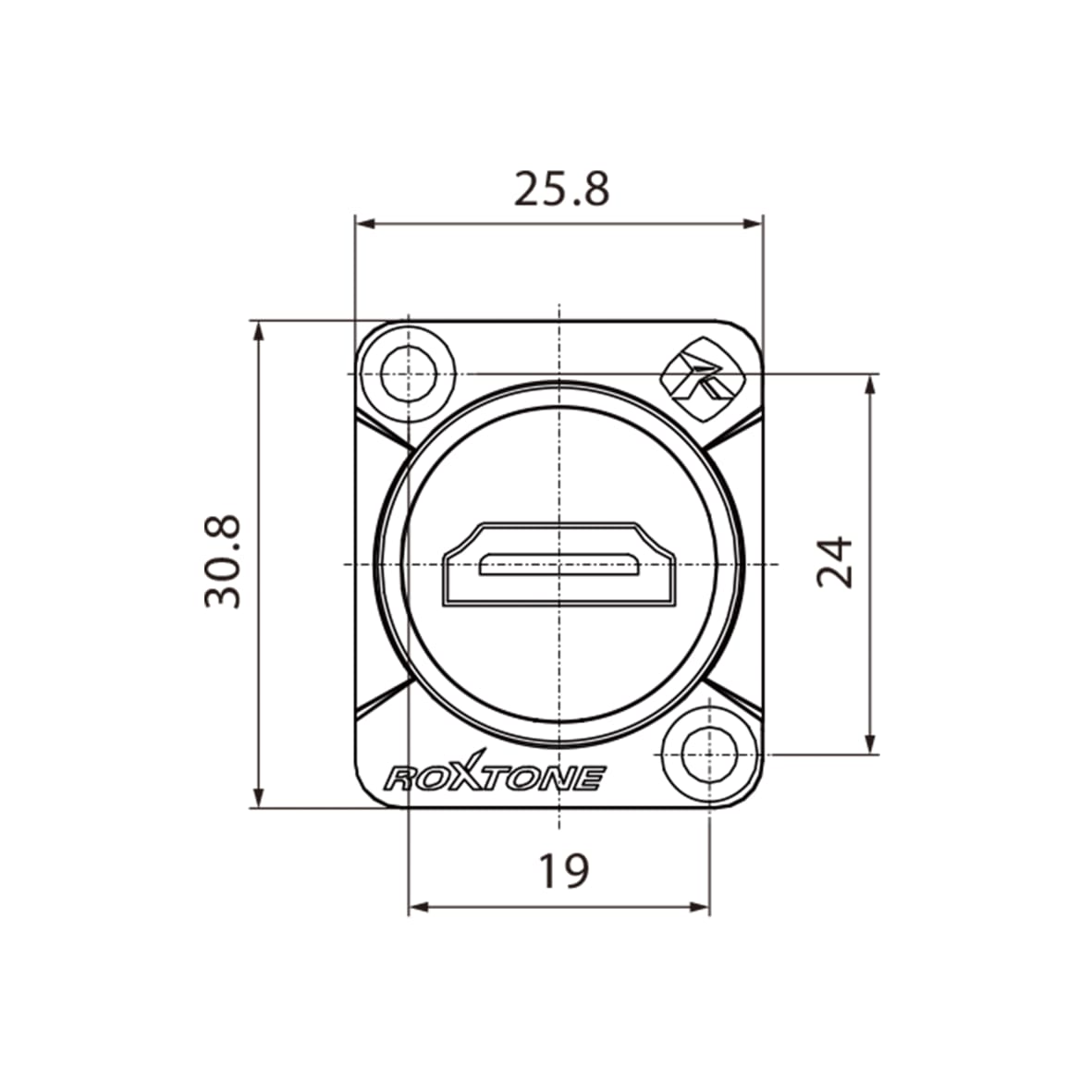

-Mounting Format: D-size Chassis Mount

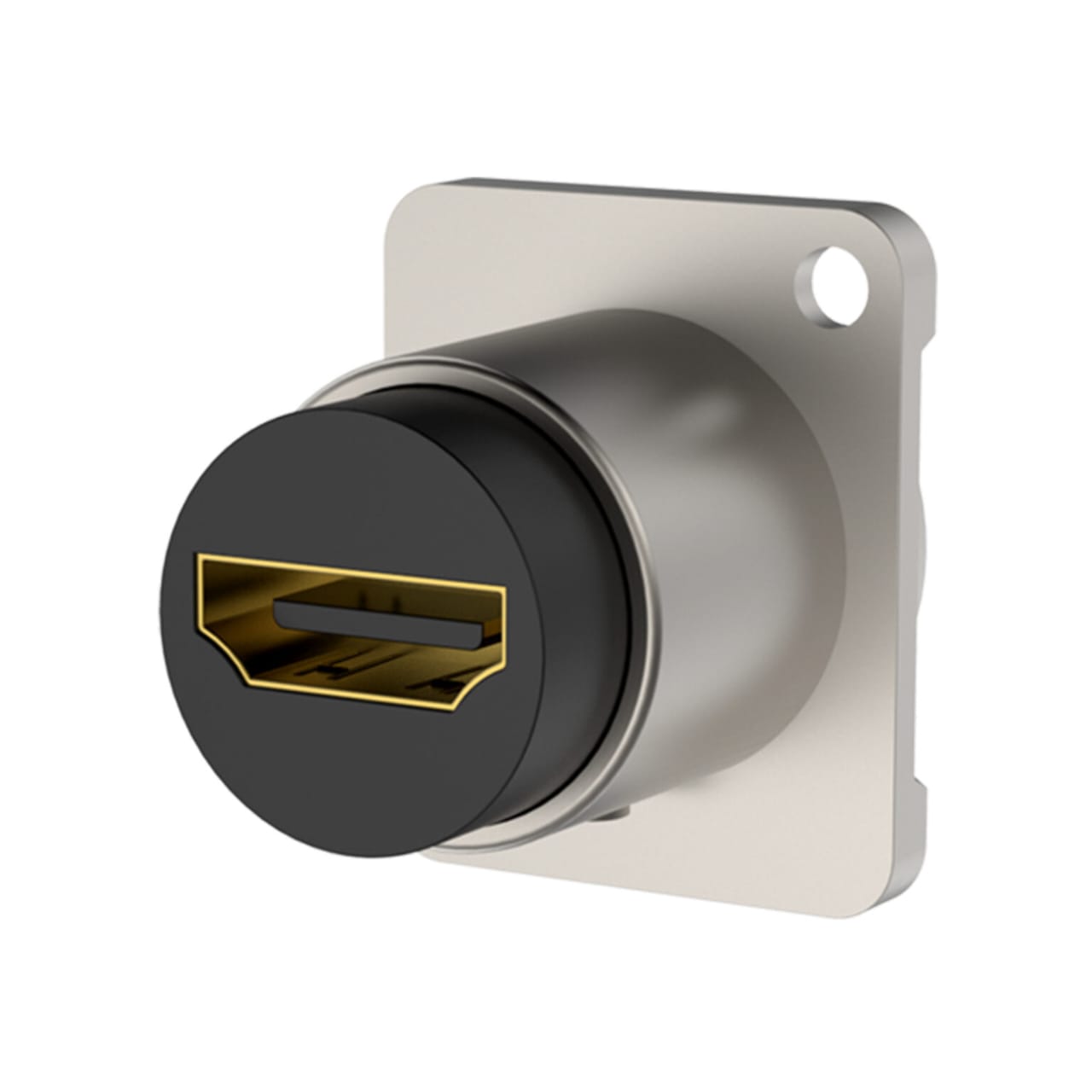

-Connector Type: HDMI Female-to-Female Feed-Through
Contact Material: Brass with Gold Plating
-Bandwidth: Up to 10.2 Gbps
-Resolutions Supported: 4K at 30Hz, 1080p at 120Hz
-Insert Material: ABS/PA6 Engineering Plastic
