Product Overview:

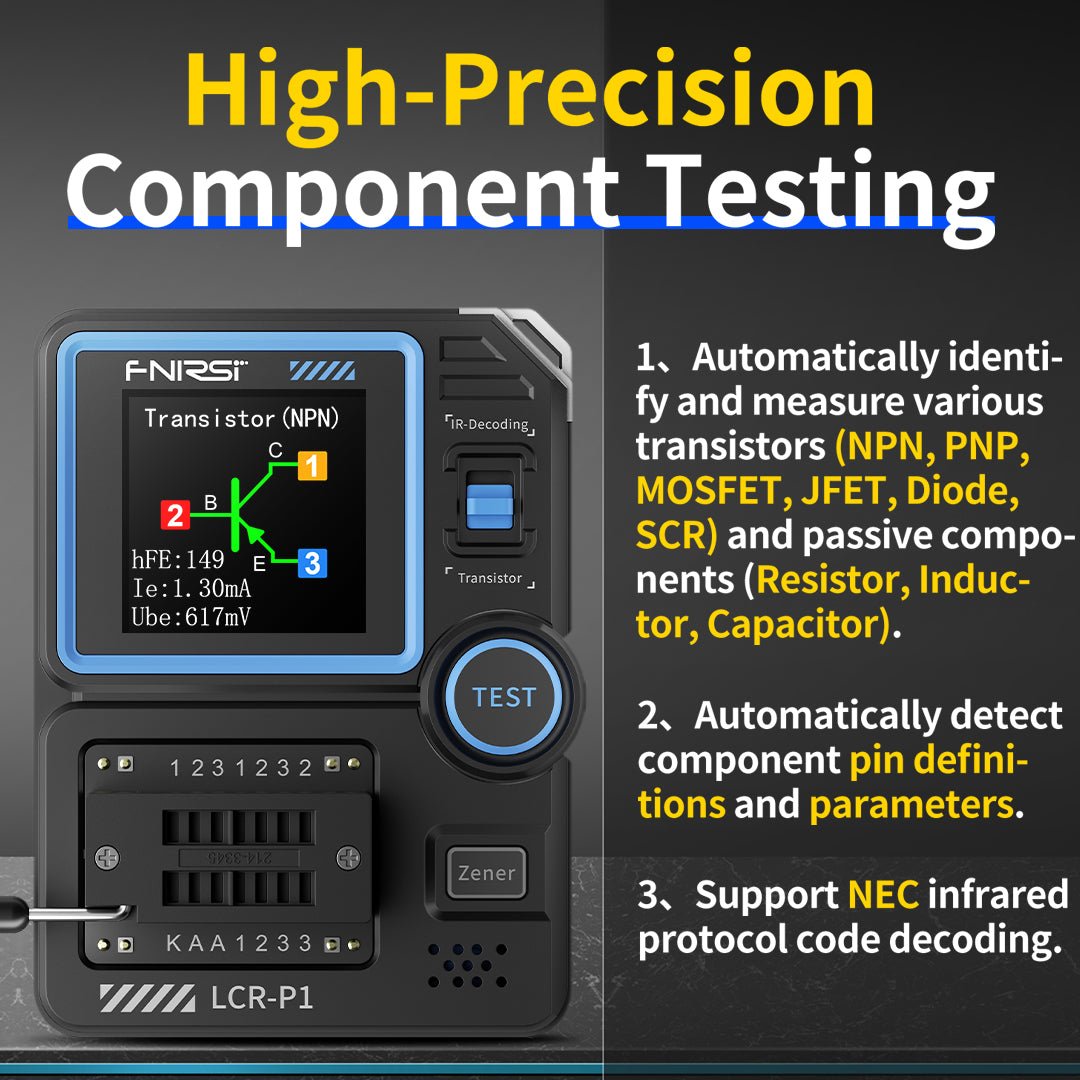

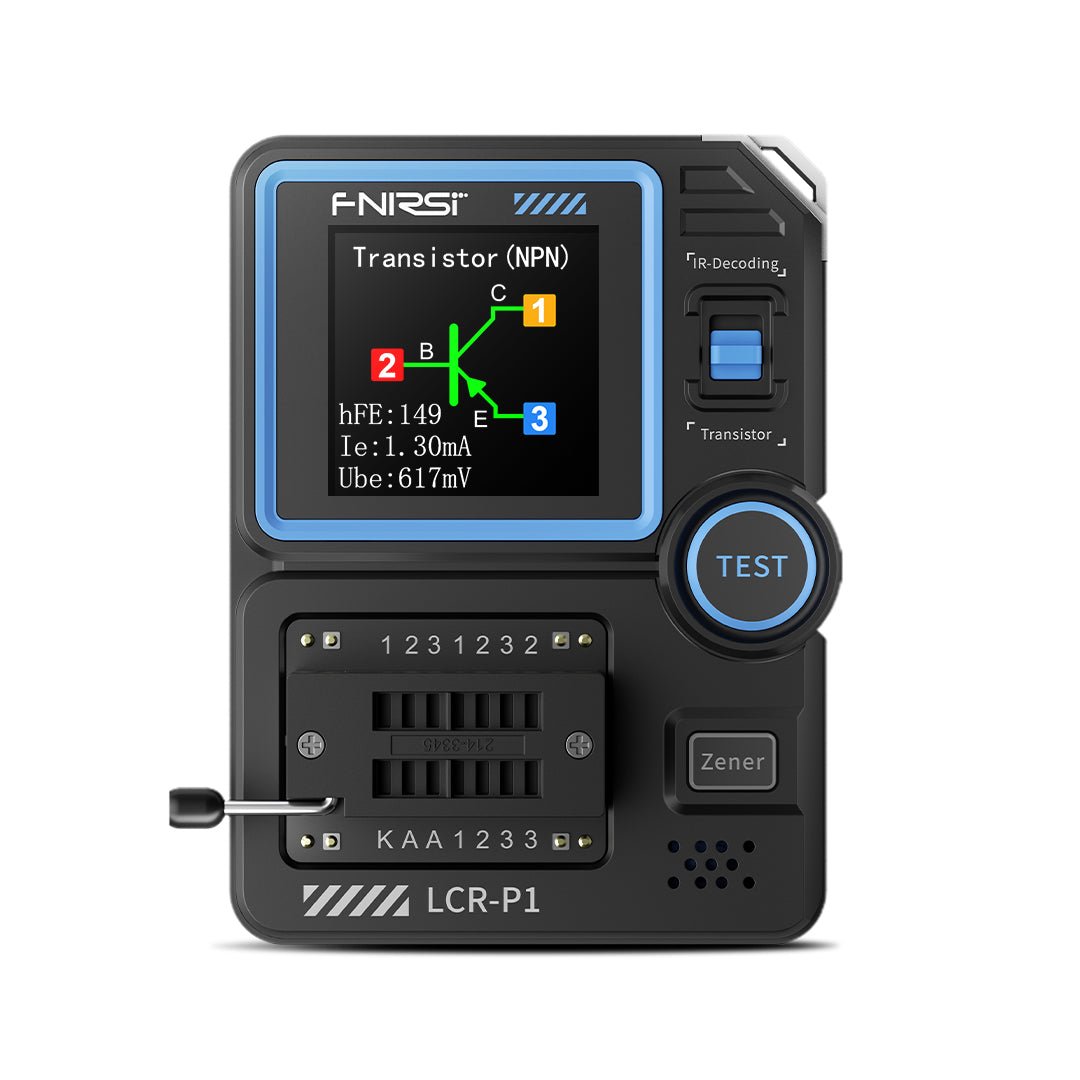

The FNIRSI LCR-P1 is a high-precision, handheld diagnostic tool designed for the automated detection and analysis of semiconductor components. Featuring a 1.44-inch color TFT display, it identifies component types and pin arrangements automatically, streamlining testing for engineers and technicians.

Key Technical Features:

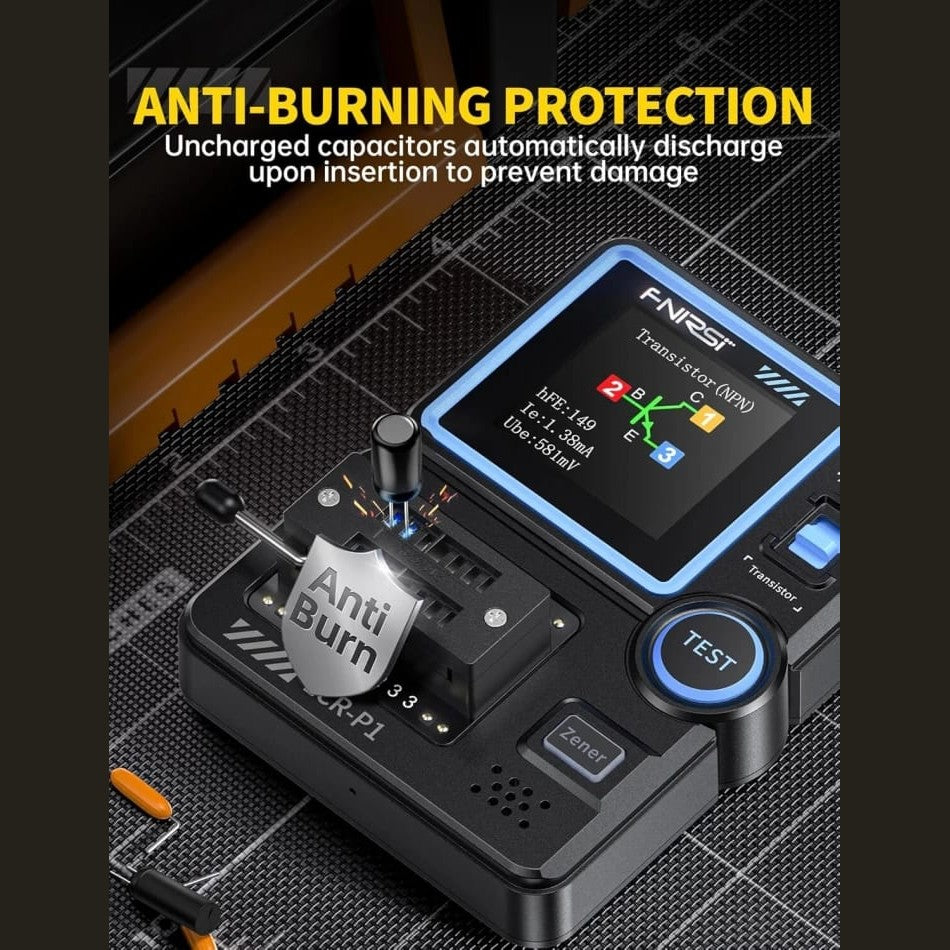

-Intelligent Anti-Burn Protection: Equipped with an automatic discharge mechanism for undischarged capacitors to protect internal circuitry during insertion
-Zener Diode Measurement: Includes a dedicated high-voltage test channel supporting Zener diode breakdown voltage measurements from 0.01V to 32V

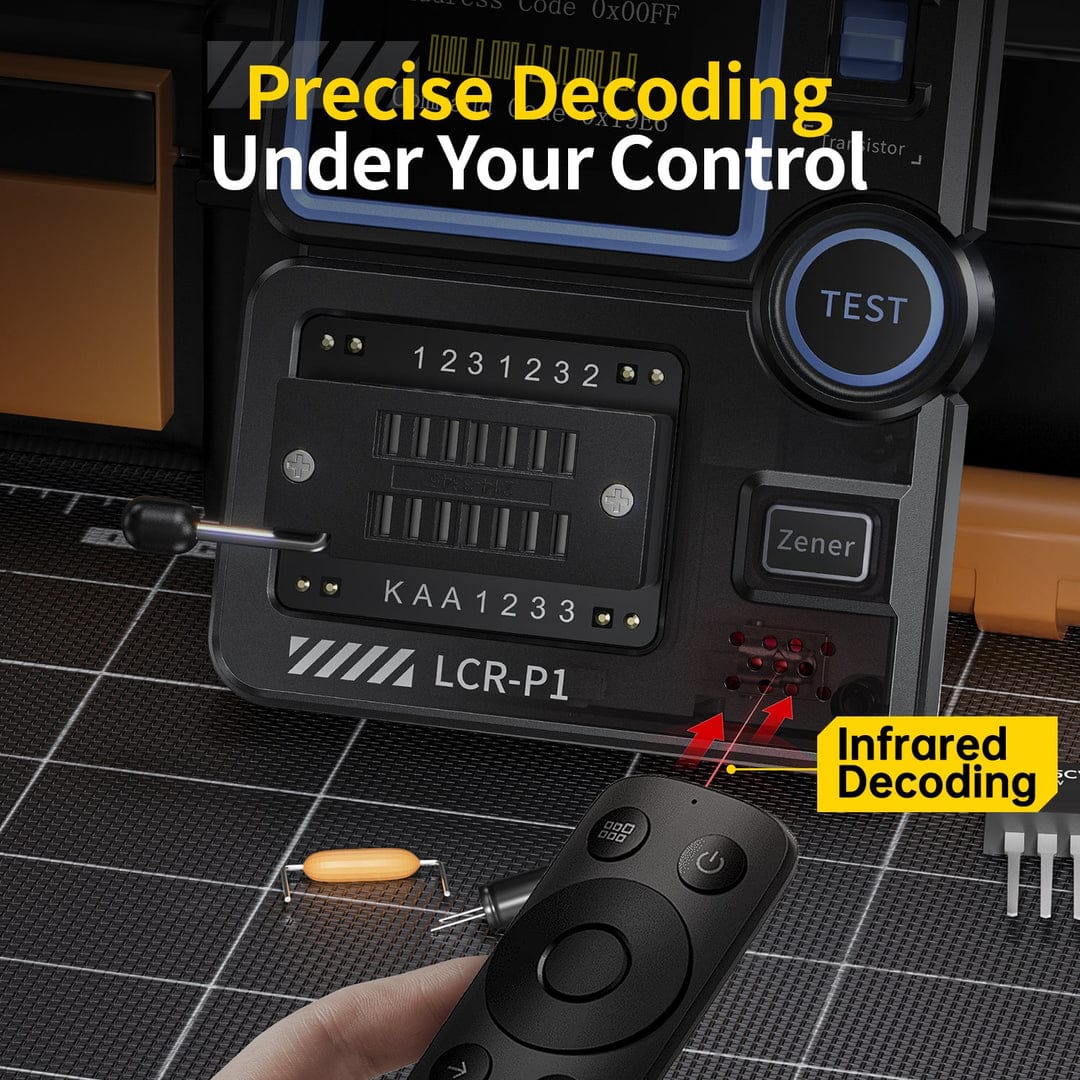

-Infrared Decoding: Supports the analysis of NEC protocol infrared codes for remote control troubleshooting and signal verification
-Interchangeable Test Interface: Features a replaceable test board system to accommodate both through-hole and SMD (Surface Mount Device) components
-Connectivity & Updates: Supports USB Type-C for charging, data export to PC (Excel format), and firmware upgrades

Technical Specifications:
-Model: LCR-P1
-Dimensions: 71mm x 87mm x 28mm
-Weight: 112g
-Display: 1.44-inch Color TFT Screen
-Power Supply: 300mAh Internal Lithium Battery
-Charging: USB Type-C (5V/1A)
-Operating Temperature: 0°C to 40°C
-Resistance Range: 0.01Ω – 50MΩ
-Capacitance Range: 25pF – 100mF
-Inductance Range: 10µH – 1000µH

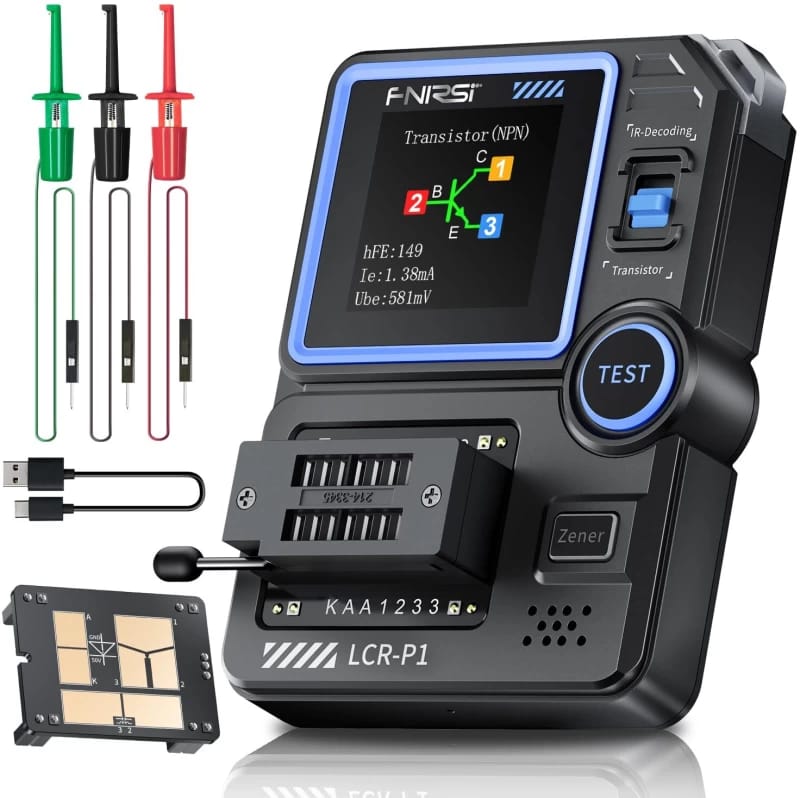

What’s in the Box:
-1 x FNIRSI LCR-P1 Host
-1 x Replaceable Test Board (For SMD and through-hole testing)
-3 x Test Hook Cables (Red, Yellow, Green)
-1 x USB Type-C Data Cable
-1 x User Manual
