Technical Product Overview:

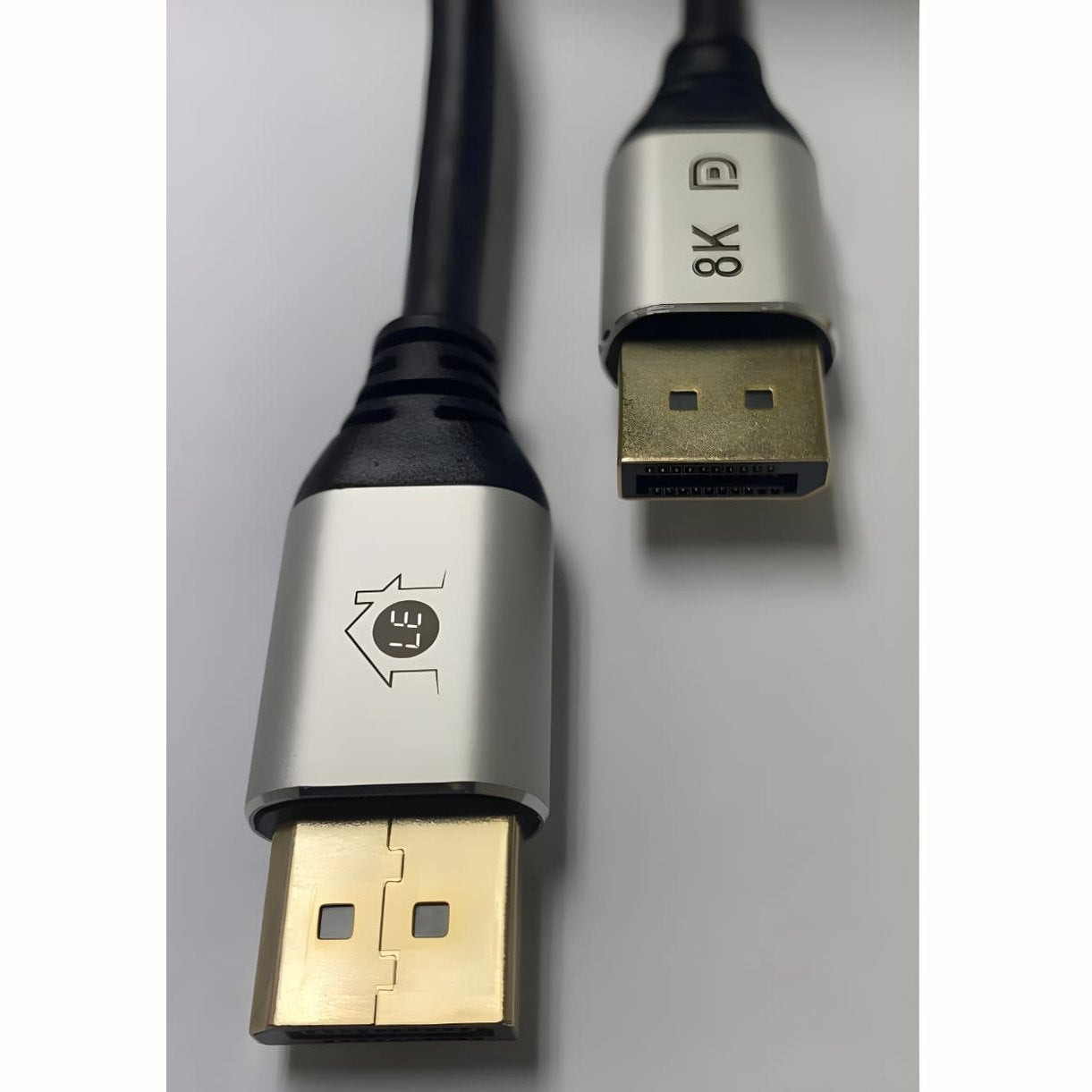

The DisplayPort 1.4 HBR3 Cable is a 2-meter high-bandwidth interface designed for 8K UHD video transmission. Engineered with 26 AWG solid copper conductors, the cable supports a total bandwidth of 32.4 Gbps. It utilizes Display Stream Compression (DSC 1.2) to achieve resolutions up to 7680 × 4320 at 60Hz. The architecture features a 128-strand aluminium/copper braid with 80% coverage to ensure signal integrity and electromagnetic interference (EMI) suppression in high-density electronic environments.

Key Technical Features:
-HBR3 Protocol Architecture: Supports High Bit Rate 3 (HBR3) standards, enabling 32.4 Gbps data throughput for uncompressed 4K at 120Hz and 8K at 60Hz via DSC
-High-Density EMI Shielding: Features a 128B aluminium/copper braid providing 80% coverage, combined with internal copper foil to minimize signal attenuation and external interference
-26 AWG Copper Conductors: Utilizes heavy-gauge pure copper internal wiring to maintain electrical conductivity over the 2-meter length
-Dynamic HDR & Metadata Support: Enables expanded color depth and contrast ratios for HDR-compatible displays and high-dynamic-range content
-Hardware Interface Integrity: 24K gold-plated connectors with internal copper foil shielding provide oxidation resistance and stable physical connection points
-DSC 1.2 & FEC: Integrated support for Display Stream Compression 1.2 and Forward Error Correction to maintain visual fidelity during high-bandwidth transmission

Technical Specifications:
-Interface Standard: DisplayPort 1.4 (Backwards compatible with DP 1.2 and 1.1)
-Total Bandwidth: 32.4 Gbps
-Length: 2 Meters
-Conductor Gauge: 26 AWG Pure Copper
-Shielding: 128-strand Aluminium/Copper Braid (80% coverage) + Copper Foil
-Connector Finish: 24K Gold-Plated
-Resolution Support: 8K (7680×4320) @ 60Hz, 4K @ 144Hz, 2K @ 240Hz
-System Functions: 3D, Dynamic HDR, DSC 1.2, HBR3, MST (Multi-Stream Transport)
-Audio Channels: 32 Digital Audio Channels
