Description

Technical Product Overview:

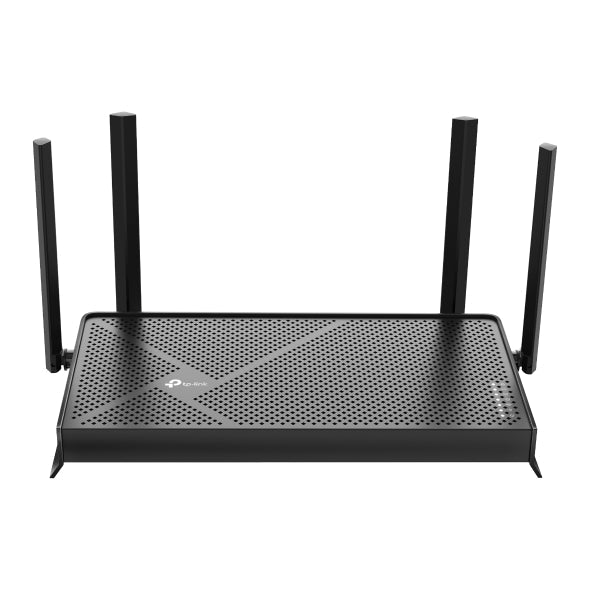

The Archer BE230 is a dual-band WiFi 7 router (802.11be) with a combined throughput of up to 3.6 Gbps. It features Multi-Link Operation (MLO) support and is equipped with two 2.5 Gbps ports and three 1 Gbps ports for high-speed wired connectivity.

Key Technical Features:
-Wireless Standard: WiFi 7 (802.11be); backward compatible with 802.11ax/ac/n/g/b/a
-Frequency Bands: Dual-Band (2.4 GHz and 5 GHz)
-Data Rates: 5 GHz up to 2882 Mbps; 2.4 GHz up to 688 Mbps
-Wired Ports: 1× 2.5 Gbps WAN, 1× 2.5 Gbps LAN, 3× 1 Gbps LAN
-Antenna Configuration: 4× internal high-gain antennas with Beamforming

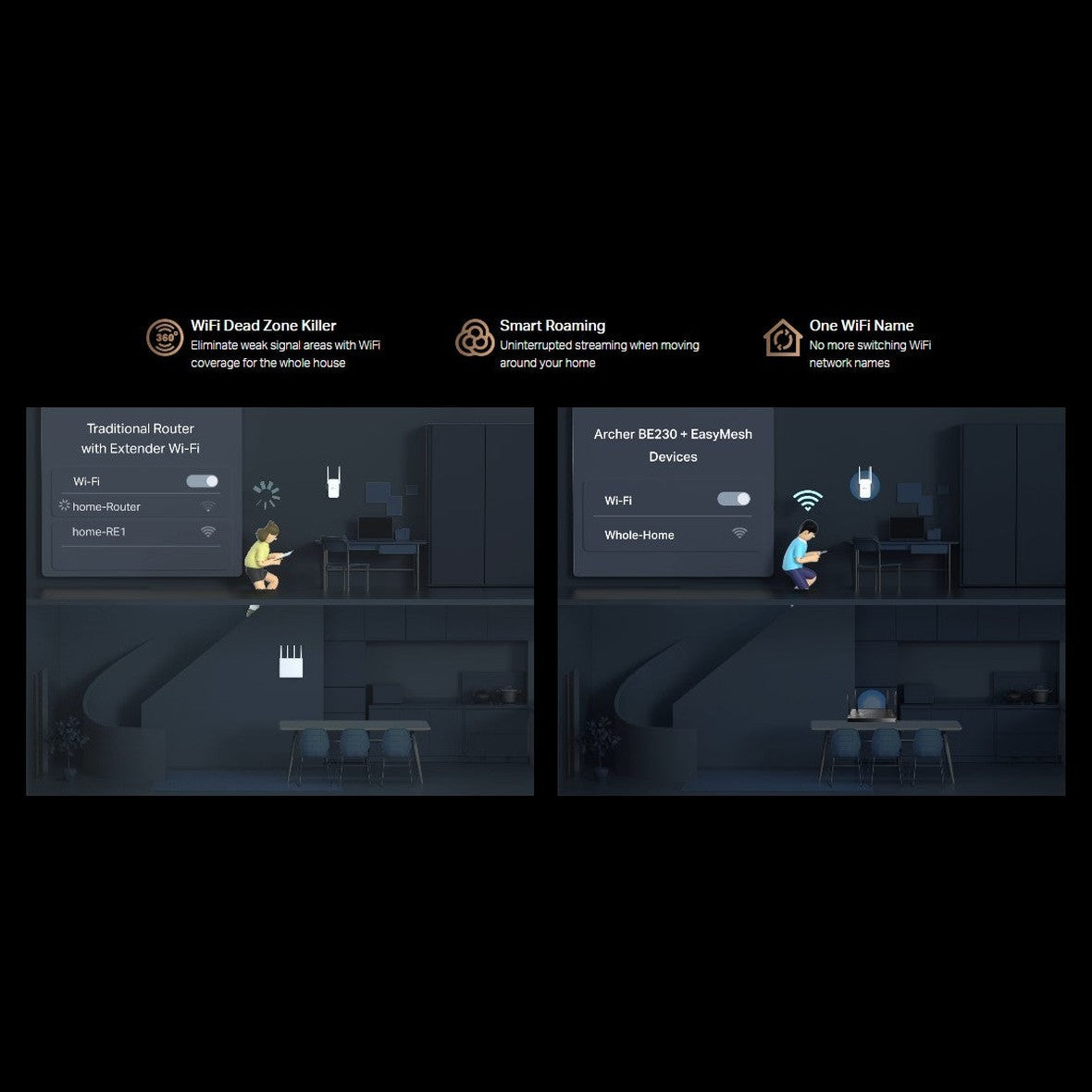

-Advanced Features: Multi-Link Operation (MLO), 4K-QAM, and EasyMesh compatibility
-Security: WPA3 compliant, TP-Link HomeShield, and VPN Client/Server support

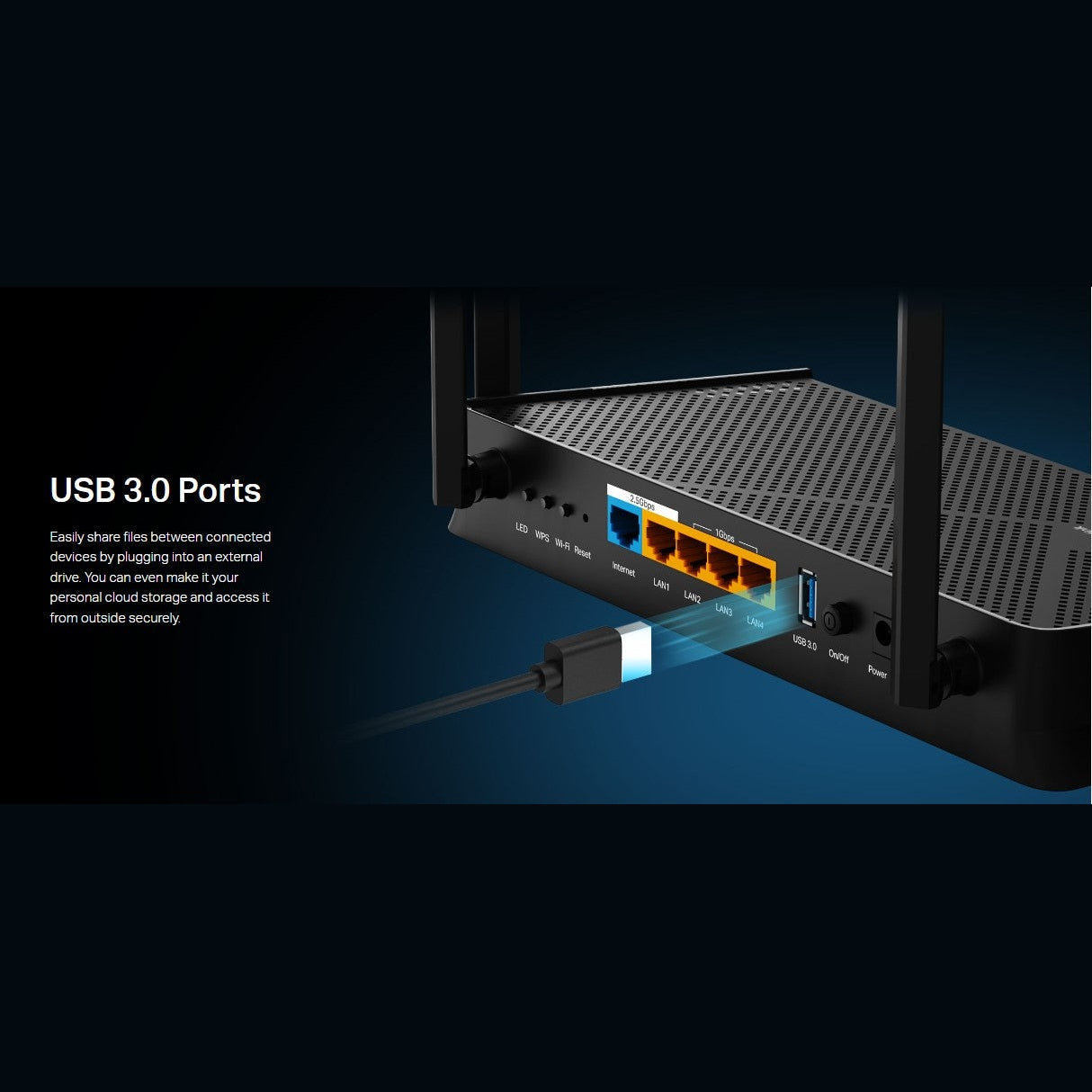

-USB Support: 1× USB 3.0 (5Gbps) Type-A port for FTP and Media Server functions
