Description

Technical Product Overview:

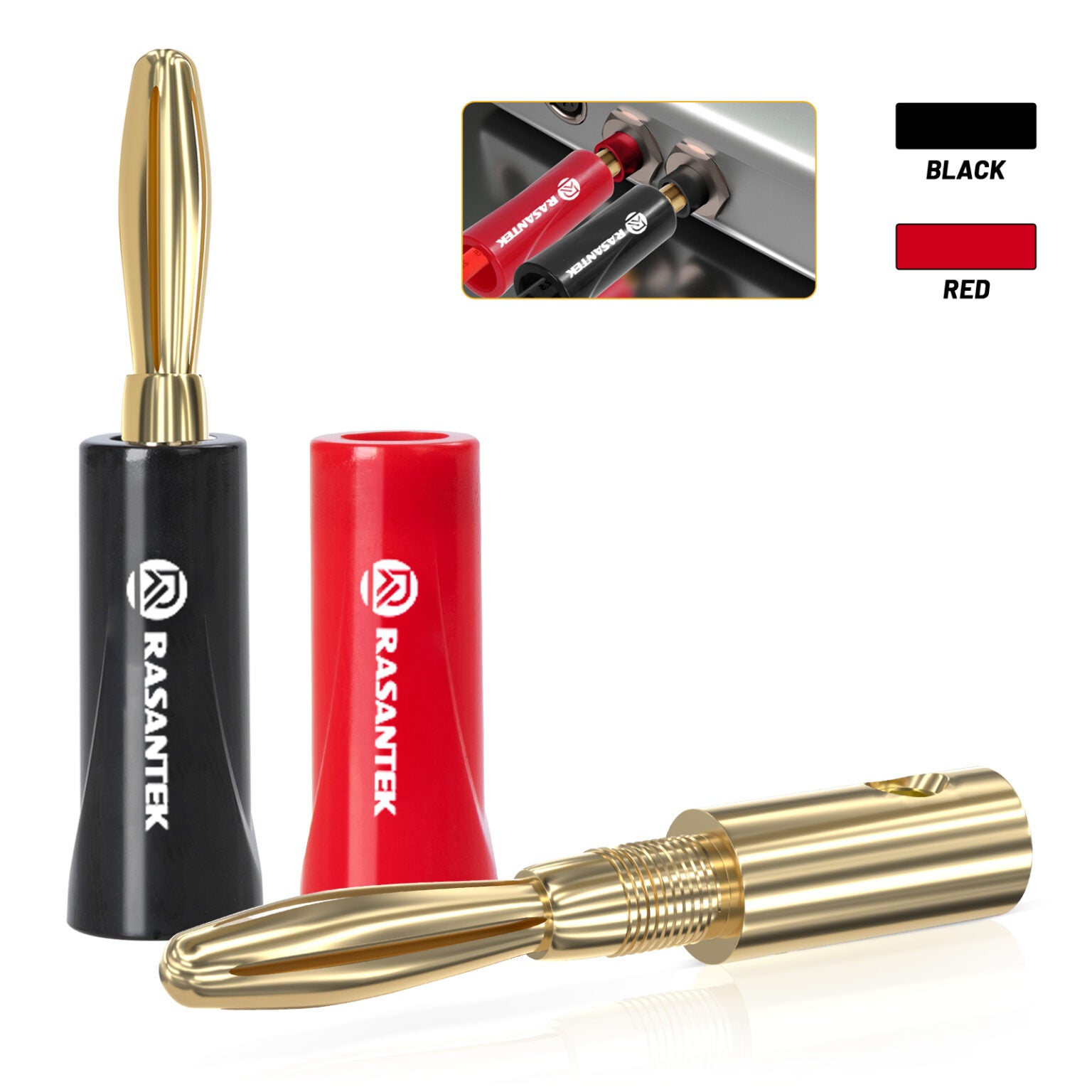

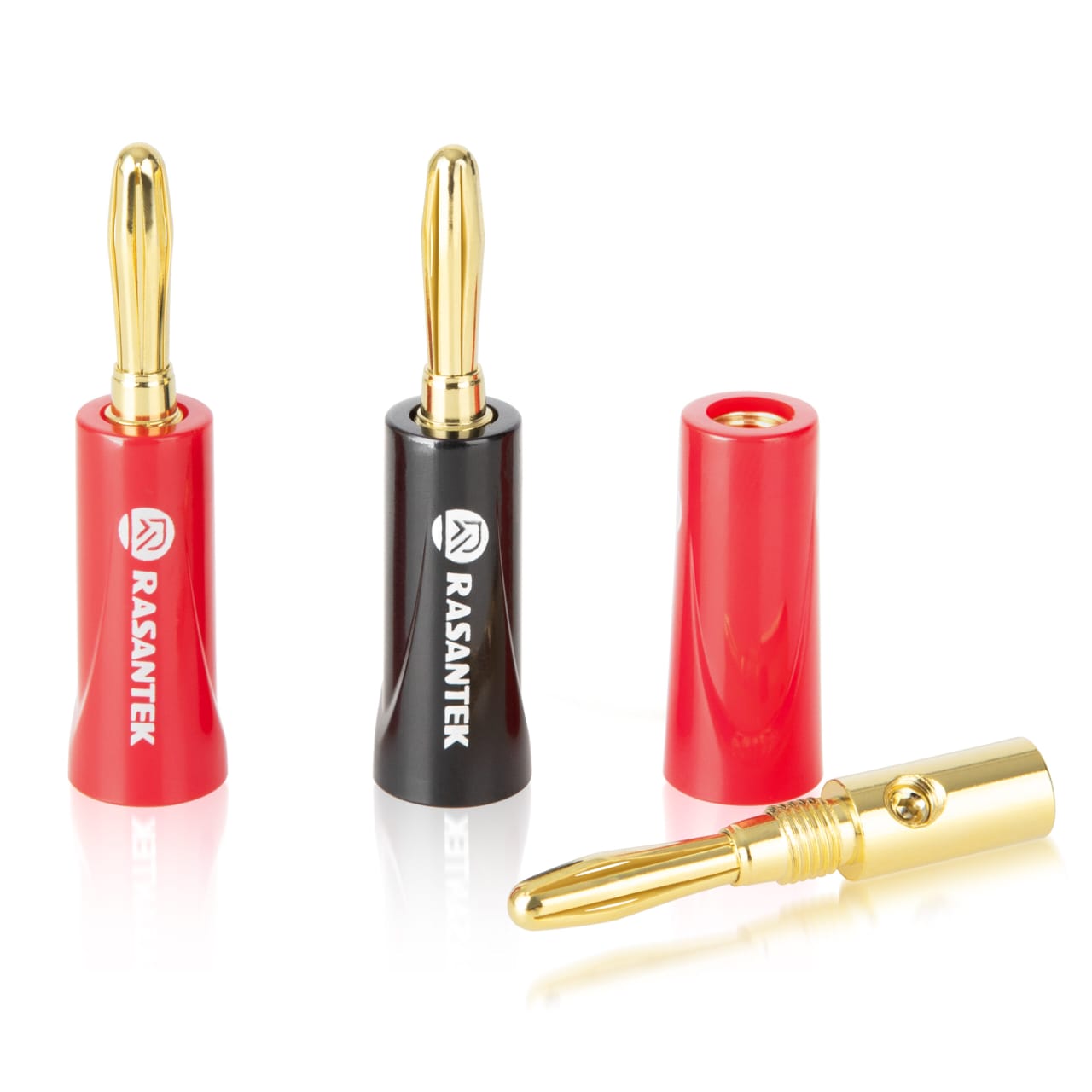

The Rasantek Banana Plug set (8-Pack) consists of male audio connectors engineered for speaker wire termination. The hardware features a brass conductor body with a pure copper core, treated with a 24K gold electroplated finish to prevent oxidation and maintain electrical conductivity. These connectors utilize a dual-screw locking mechanism for solderless wire attachment, providing a mechanical bond between the speaker cable and the audio terminal.

Key Technical Features:
-24K Gold-Plated Interface: Electroplated gold coating provides a non-reactive surface to resist atmospheric corrosion and surface oxidation
-Dual-Metal Construction: Utilizes a brass housing for structural rigidity and a copper core for electrical signal transmission
-Solderless Locking Mechanism: Dual lock-screw design facilitates mechanical wire retention without the need for thermal bonding (soldering)
-Wire Gauge Compatibility: Internal aperture accommodates speaker wire diameters up to 6.0mm
-Insulated Housing: Features an ABS polymer shell to prevent electrical shorting between adjacent terminals

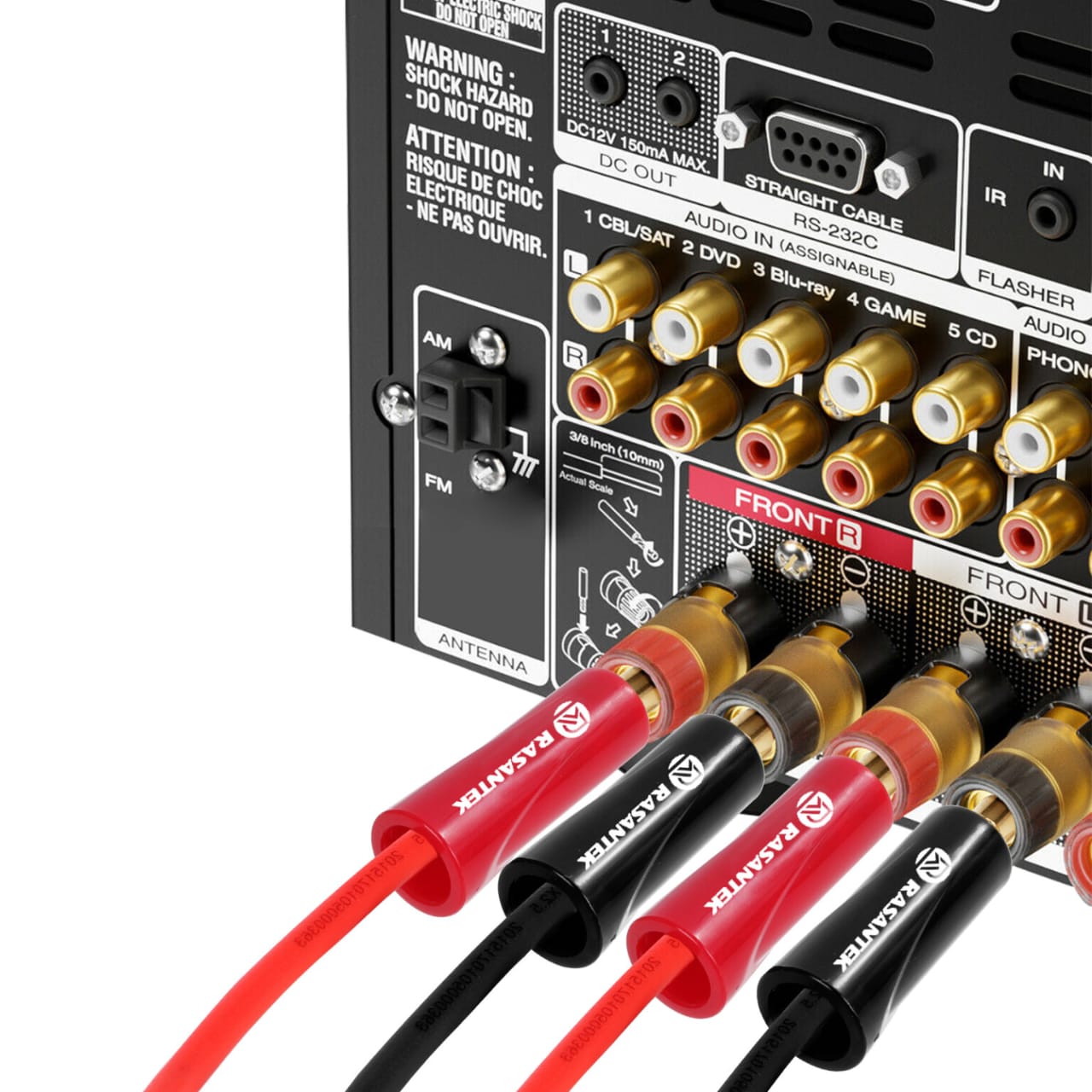

-Standardized Dimensions: Designed for compatibility with standard 4mm banana jack female terminals found on amplifiers and loudspeakers

Technical Specifications:
-Brand: Rasantek
-Connector Type: Banana Plug (Male)
-Conductive Material: Brass body with Pure Copper core
-Plating: 24K Gold Electroplated
-Shell Material: ABS Polymer
-Maximum Wire Diameter: 6.0mm
-Attachment Method: Dual Screw-Lock (Solderless)
-Package Quantity: 8 Units (4 Red, 4 Black for polarity identification)
