Description

Technical Product Overview:
The LE Smartline Mini UPS by Lifestyle Electronics is a dedicated DC energy storage system designed for the continuous operation of telecommunications and networking hardware during AC power interruptions. The unit features an 8800mAh internal battery array composed of four 2200mAh Lithium-ion cells. It provides a multi-rail DC output (5V, 9V, 12V) to maintain power to Wi-Fi routers, fiber ONT boxes, and CCTV components. The compact chassis measures 116 x 73 x 23.5mm, facilitating deployment in space-constrained network enclosures.

Key Technical Features:

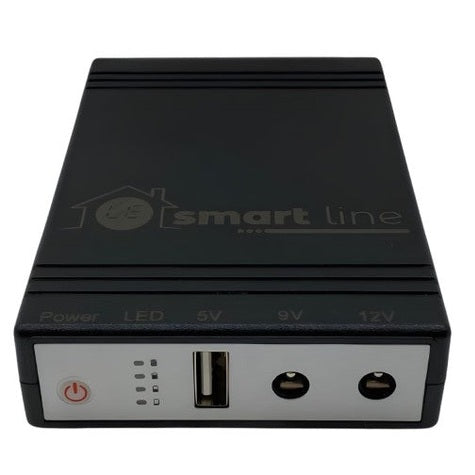

-Triple-Rail DC Output: Integrated 5V, 9V, and 12V output selectors for compatibility with diverse networking hardware
-High-Density Energy Array: 8800mAh capacity (4 x 2200mAh Li-ion) providing up to 16 hours of runtime for standard 12V Wi-Fi routers
-Rapid Charging Circuitry: Includes a dedicated 12V 2A power supply for accelerated recovery of battery SOC (State of Charge)
-Visual Status Monitoring: Hardware LED indicators for real-time battery status and low-voltage alerts
-Multi-Device Support: Engineered to power Android TV boxes, tablets, smartphones, CCTV DVRs, and LED lighting systems

LE Smartline 8800mAh Hardware Specifications:
-Brand/Manufacturer: Lifestyle Electronics (LE)
-Battery Configuration: 8800mAh (4 x 2200mAh Lithium-ion cells)
-Output Voltage Rails: 5V, 9V, 12V DC

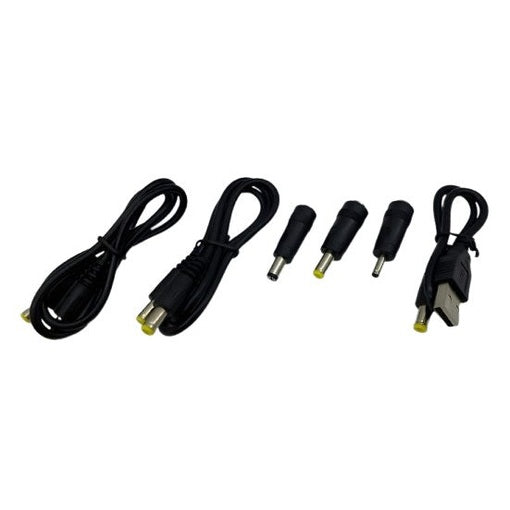

-Input Power Requirements: 12V 2A DC (Adapter included)

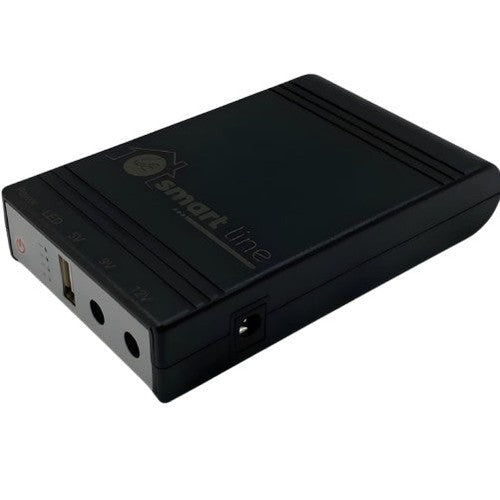

-Thermal Dimensions: 116 x 73 x 23.5mm
-Maximum Runtime: ~16 Hours (load dependent)
-Safety Integration: Short-circuit and over-charge protection
