Description

Product Overview:
The BRZHIFI BL50B is a high-fidelity 2-channel Class-D digital amplifier engineered for audiophiles who require lossless wireless performance. Built on the Qualcomm QCC3034 platform, it supports APTX-HD 24-bit transmission, delivering studio-grade audio over Bluetooth. The internal architecture features an independent TI PCM5102A DAC to ensure superior dynamic range and low distortion, all housed in a precision-machined, heat-dissipating aluminium alloy chassis.

Key Technical Features:
-Lossless Bluetooth Integration: Equipped with the QCC3034 chipset, providing APTX-HD 24-bit lossless transmission for high-resolution wireless audio that rivals wired connections
-Independent DAC Decoding: Features the Texas Instruments PCM5102A 24-bit DAC, offering a 112dB dynamic range and a direct 2.1V RMS output for clean, burr-free high frequencies

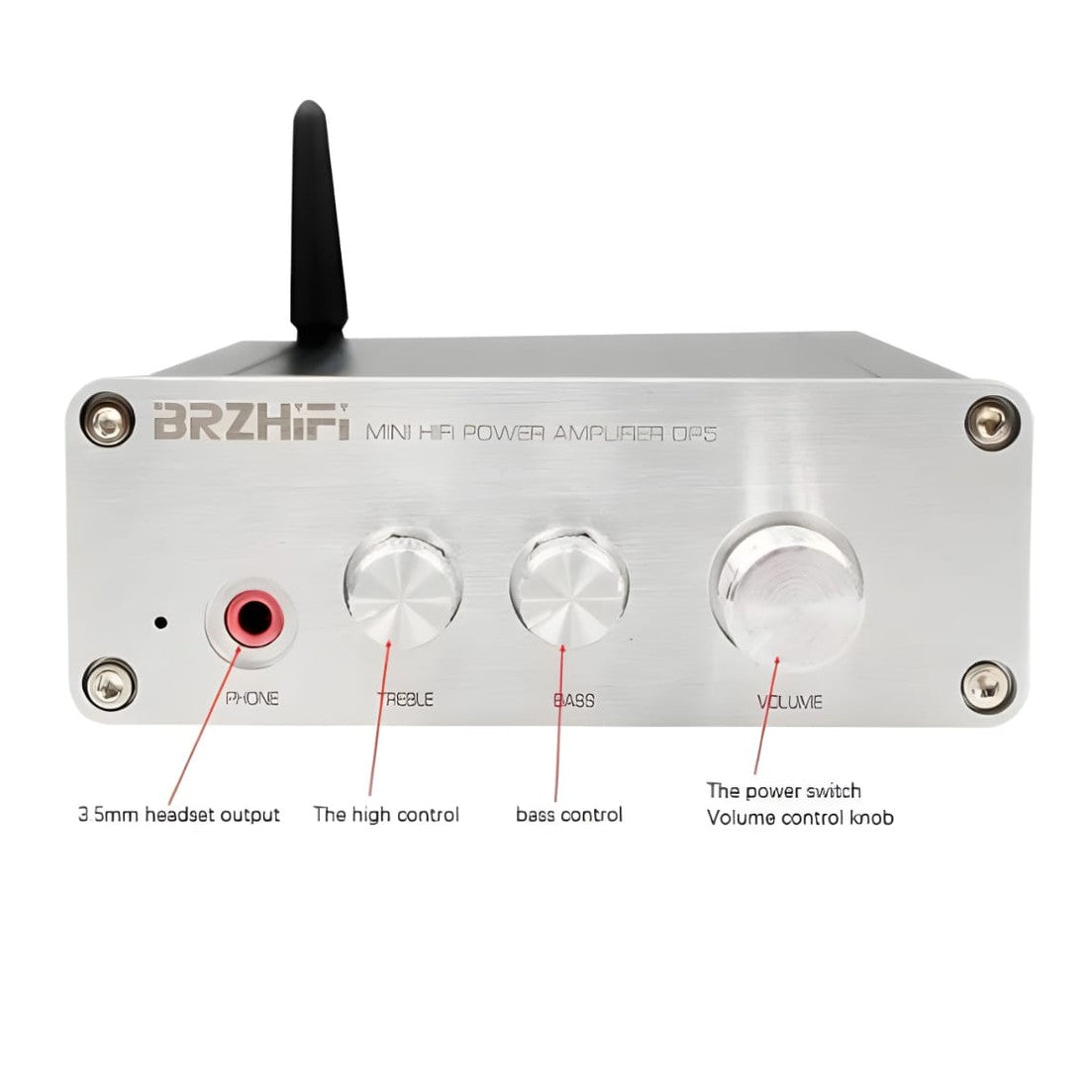

-Precision Tone Customization: High-quality front-panel potentiometers allow for independent Bass and Treble adjustment alongside a smooth-taper Master Volume control
-High-Efficiency Power Stage: Utilizes Class-D architecture to drive 4–8Ω speakers efficiently, maintaining a low static power consumption of only 5W

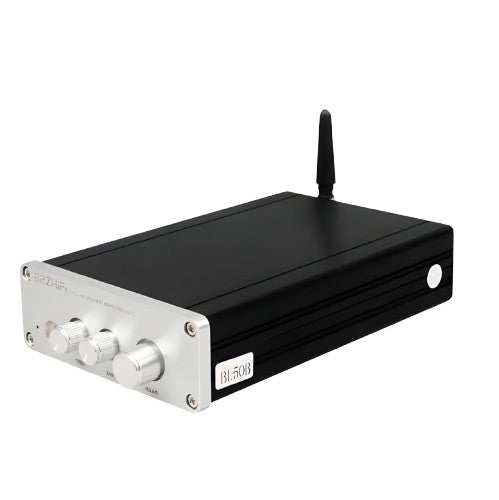

-Interference-Shielded Chassis: The all-aluminium alloy body provides natural cooling and protection against electromagnetic interference (EMI) for a cleaner signal path

Technical Specifications:
-Amplifier Chipset: High-Efficiency Class-D (Dual Channel)
-Bluetooth Chipset: Qualcomm QCC3034 (Supports APTX-HD / 24-bit)
-DAC Chip: TI PCM5102A (112dB Dynamic Range)
-Power Output: 2 x 100W Peak @ 4Ω (Achievable with 24V 10A supply)
-Frequency Response: 20Hz – 20KHz
-Load Impedance: 4Ω – 8Ω
-Input Voltage: DC 12V – 24V
-Signal-to-Noise Ratio (SNR): -101dB
-Dimensions: 158mm x 100mm x 35mm

Ideal Applications:
-High-resolution wireless streaming to passive bookshelf or floor-standing speakers
-Upgrading desktop computer audio to audiophile-grade 2.0 stereo
-Compact Hi-Fi setups for small to medium-sized rooms
